TY-20/22/26 SERIES
SPECIFICATION

SERIES

20

22

26

MODEL

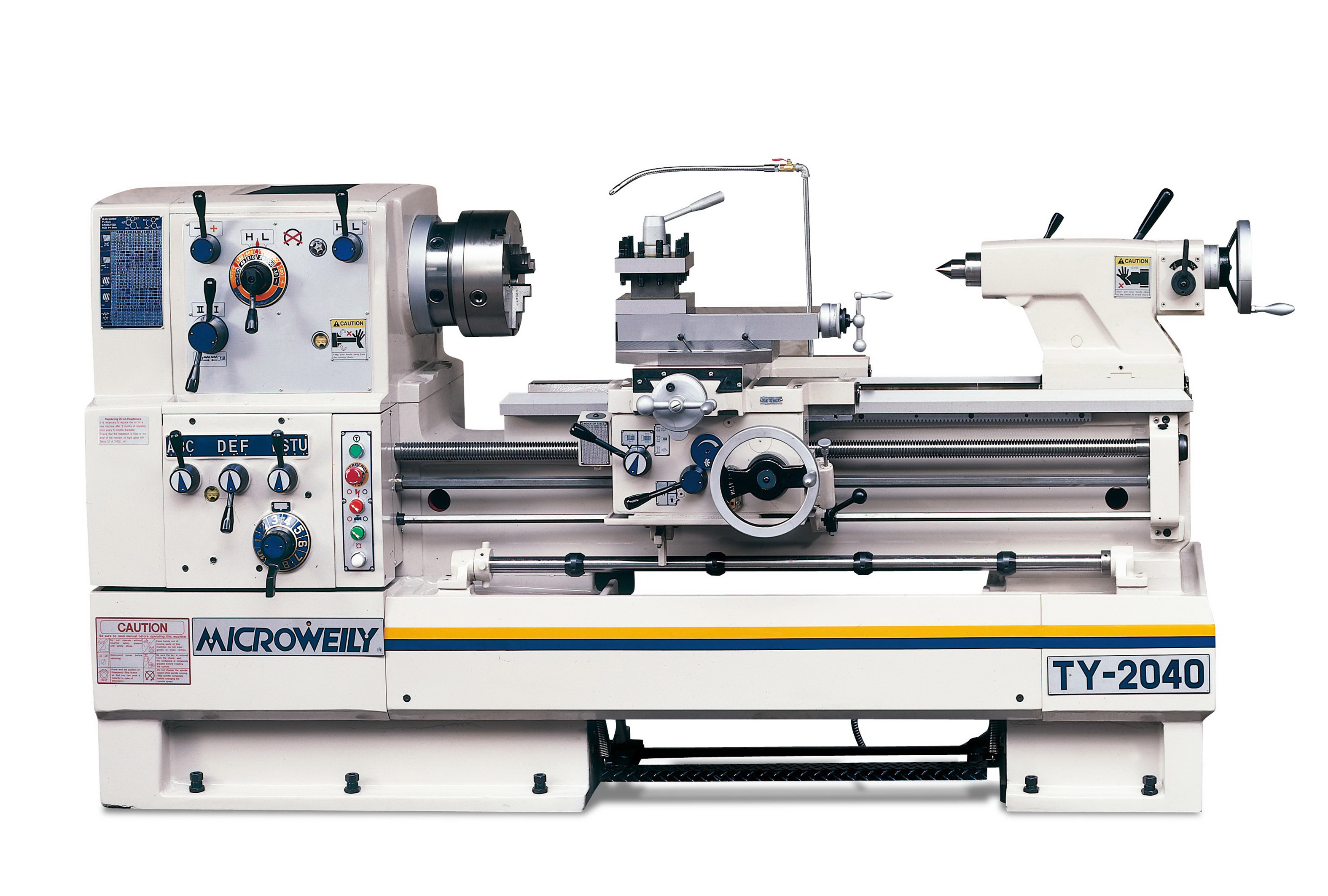

TY-2040
TY-2240
TY-2640

TY-2060
TY-2260
TY-2660

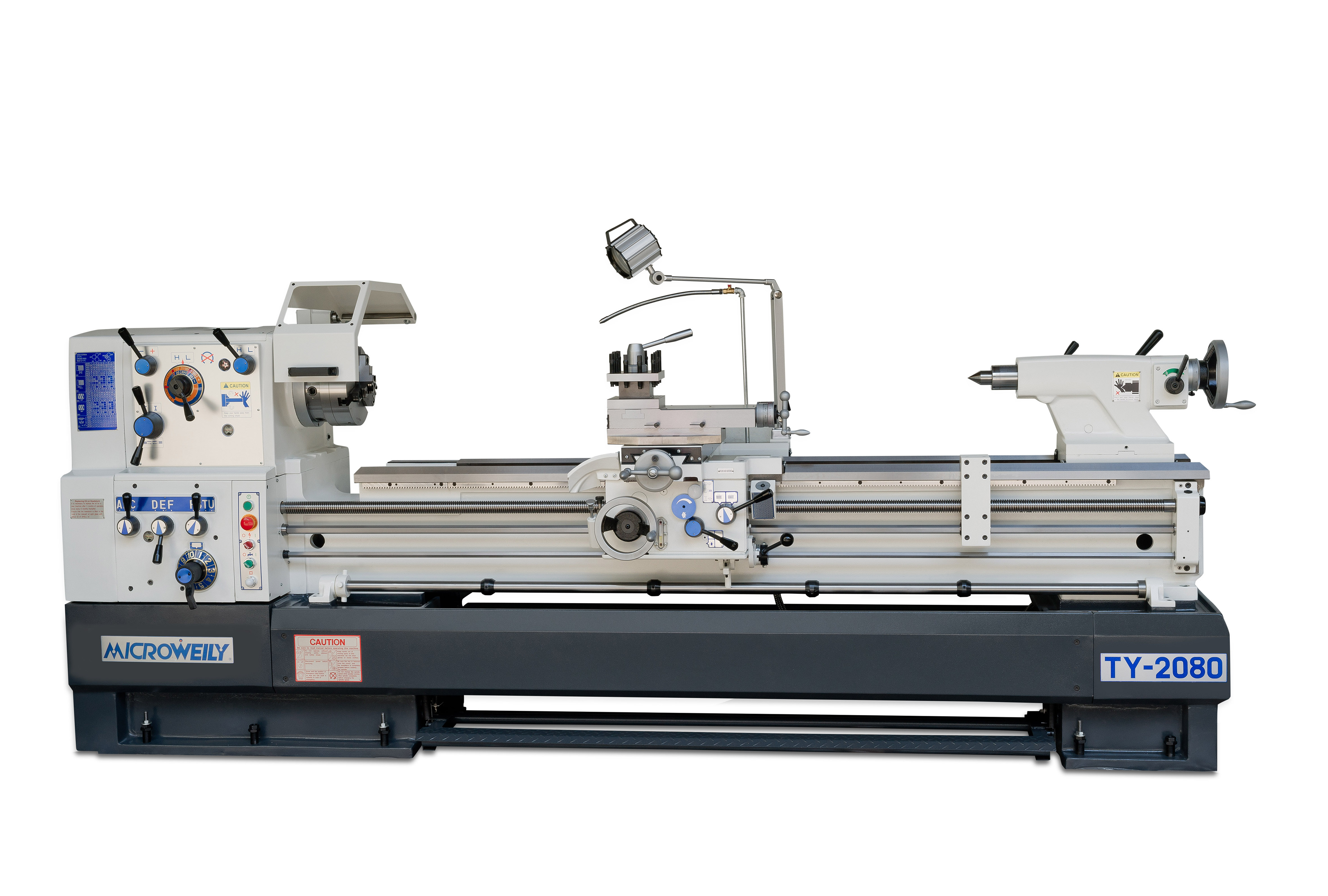

TY-2080
TY-2280
TY-2680

TY-20100
TY-22100
TY-26100

TY-20120
TY-22120
TY-26120

TY-20160
TY-22160

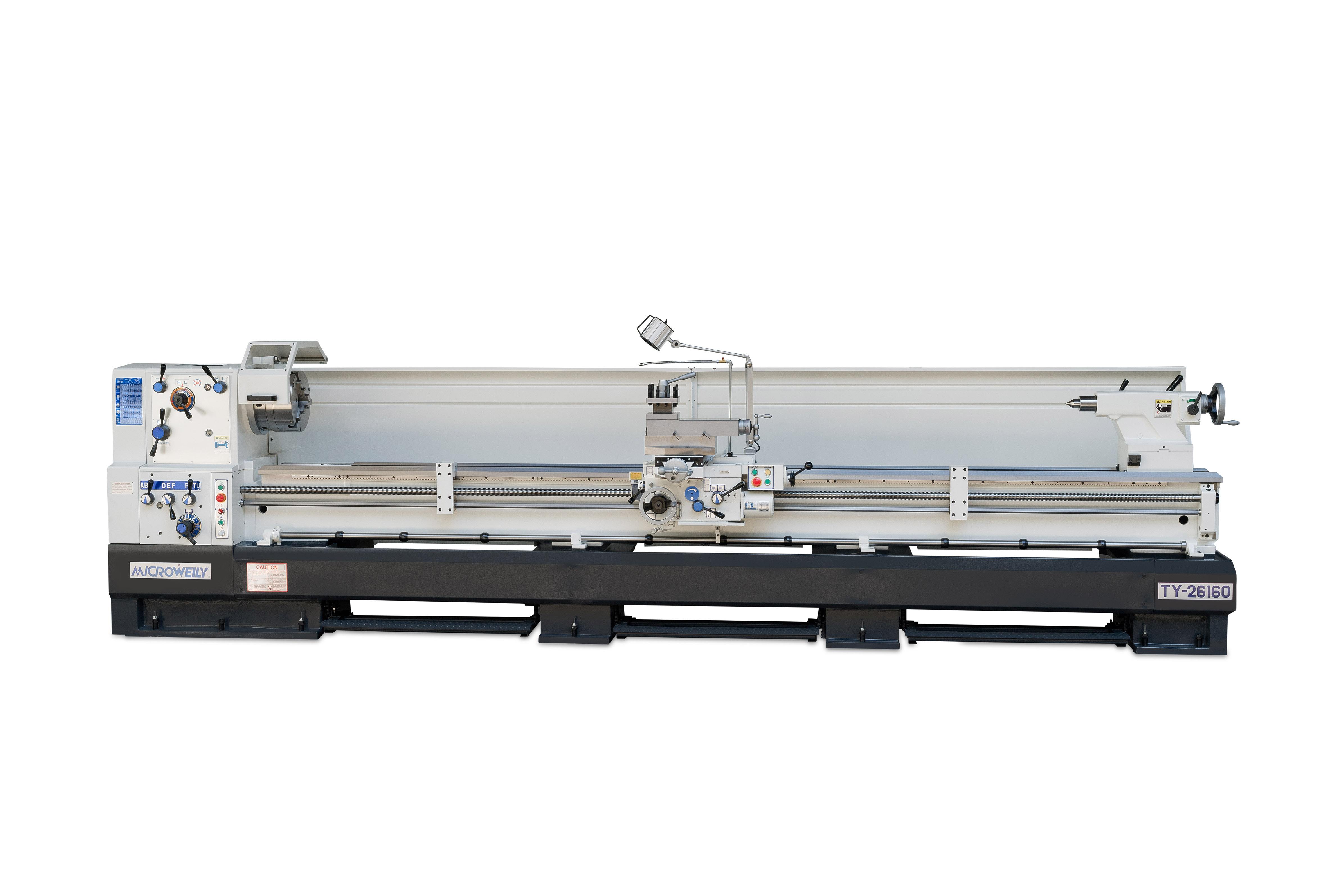

TY-26160

CAPACITY
&
DIMENSION

Swing over bed

510mm (20")

560mm (22")

660mm (26")

Swing over cross slide

330mm (13")

360mm (14-1/8")

440mm (17-5/16")

Swing in gap diameter

680mm (26-3/4")

745mm (29-1/3")

845mm (33-1/4")

Length of gap in front of face plate

180mm (7-1/16") (W/D1-8) / 200mm (7-7/8") (W/A1-8)
165mm (6-1/2") (W/D1-11) / 185mm (7-1/3") (W/A1-11)

Center height

255mm (10")

280mm (11")

330mm (13")

Center admits between

1000mm (40")

1530mm
(60-1/4")

2040mm
(80-5/16")

2550mm (100-3/8")

3060mm (120-1/2")

4060mm (160")

Bed width

400mm (15-3/4")

Motor for spindle

10HP, 3ph (Standard) / 15HP, 3ph (Optional)

Motor for coolant pump

1/8HP, 3ph

HEADSTOCK

Spindle bore

80mm (3-1/8") (Standard) / 105mm (4-1/8") For 22"/26" (Optional)

Spindle nose

D1-8"ISO or A1-8"ISO (Standard) / D1-11"ISO or A1-11"ISO (Optional)

Spindle taper in nose/sleeve

No.7/No.5 (Standard) / No.8/No.5 (Optional)

Speeds number

12

Speeds range

20-1550 r.p.m. (Standard) / 15-1200 r.p.m. For 22"/26" (Optional)

CARRIAGE
&
COMPOUND

Cross slide travel

320mm (12-1/2")

Compound rest travel

255mm (10")

Leadscrew diameter & thread

38mm (1-1/2") / 6mm P or 4 T.P.I.

THREADS
&
FEEDS

Imperial threads

60 Nos. 2-112 T.P.I.

Metric threads

60 Nos. 0.2-14mm Pitch

Diametral pitch threads

50 Nos. 4-112 D.P.

Module pitch threads

50 Nos. 0.2-7 M.P.

Longitudinal feeds

Imperial

50 Nos. 0.0014"-0.0387"/rev.

Metric

50 Nos. 0.037-1.04mm/rev.

Cross feeds

Imperial

50 Nos. 0.0007"-0.01935"/rev.

Metric

50 Nos. 0.0185-0.52mm/rev.

TAILSTOCK

Quill dia./travel

75mm (2-15/16") / 160mm (6-5/16")

Quill taper

No.5 Morse

WEIGHT
&
MEASURES
(APPROX.)

Machine length

2538mm (100")

3048mm (120")

3558mm (140")

4068mm
(160-1/8")

4578mm (180-1/4")

5598mm
(220-2/5")

Machine width

1280mm (50-3/8")

Machine height

1255mm (49-3/8") For 20" Series

1305mm (51-3/8") For 22" Series

1355mm (53-3/8") For 26" Series

Packing dimensions

100" x 54" x 67"

121" x 54" x 67"

140" x 54" x 67"

161" x 54" x 67"

185" x 54" x 67"

223" x 54" x 67"

Net weight

1980kgs

2230kgs

2480kgs

2730kgs

2980kgs

3480kgs

2030kgs

2280kgs

2530kgs

2780kgs

3030kgs

3530kgs

2080kgs

2330kgs

2580kgs

2830kgs

3080kgs

3580kgs

Gross weight

2210kgs

2480kgs

2750kgs

3020kgs

3290kgs

3830kgs

2260kgs

2530kgs

2800kgs

3070kgs

3340kgs

3880kgs

2310kgs

2580kgs

2850kgs

3120kgs

3390kgs

3930kgs

*Design and specifications are subject to change without notice.
