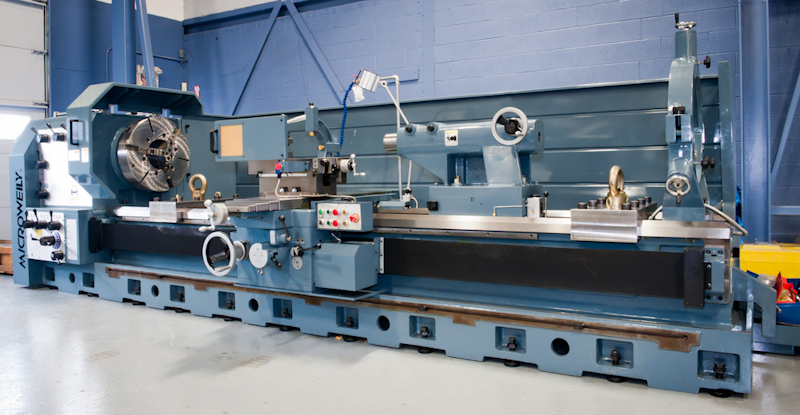

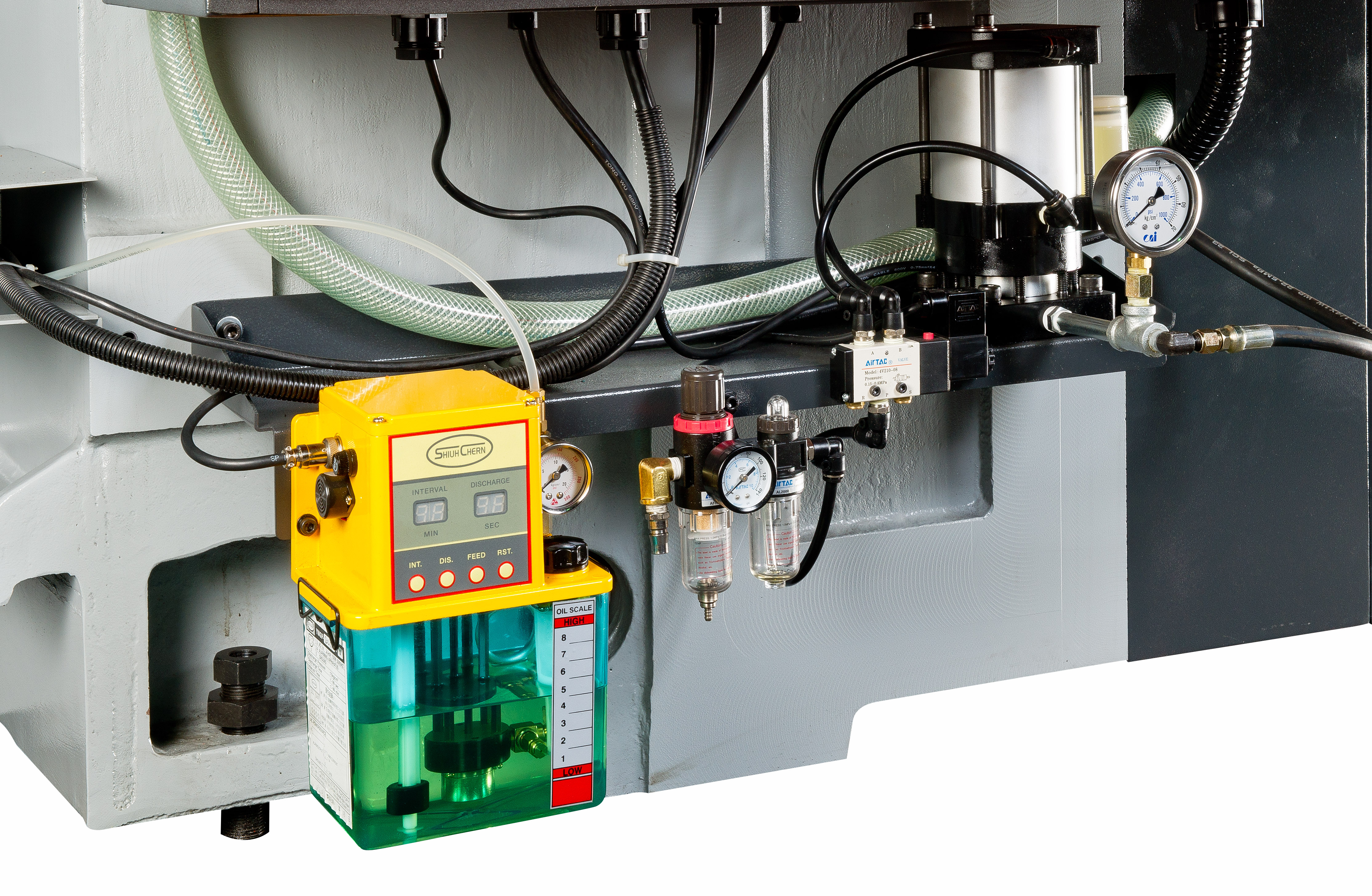

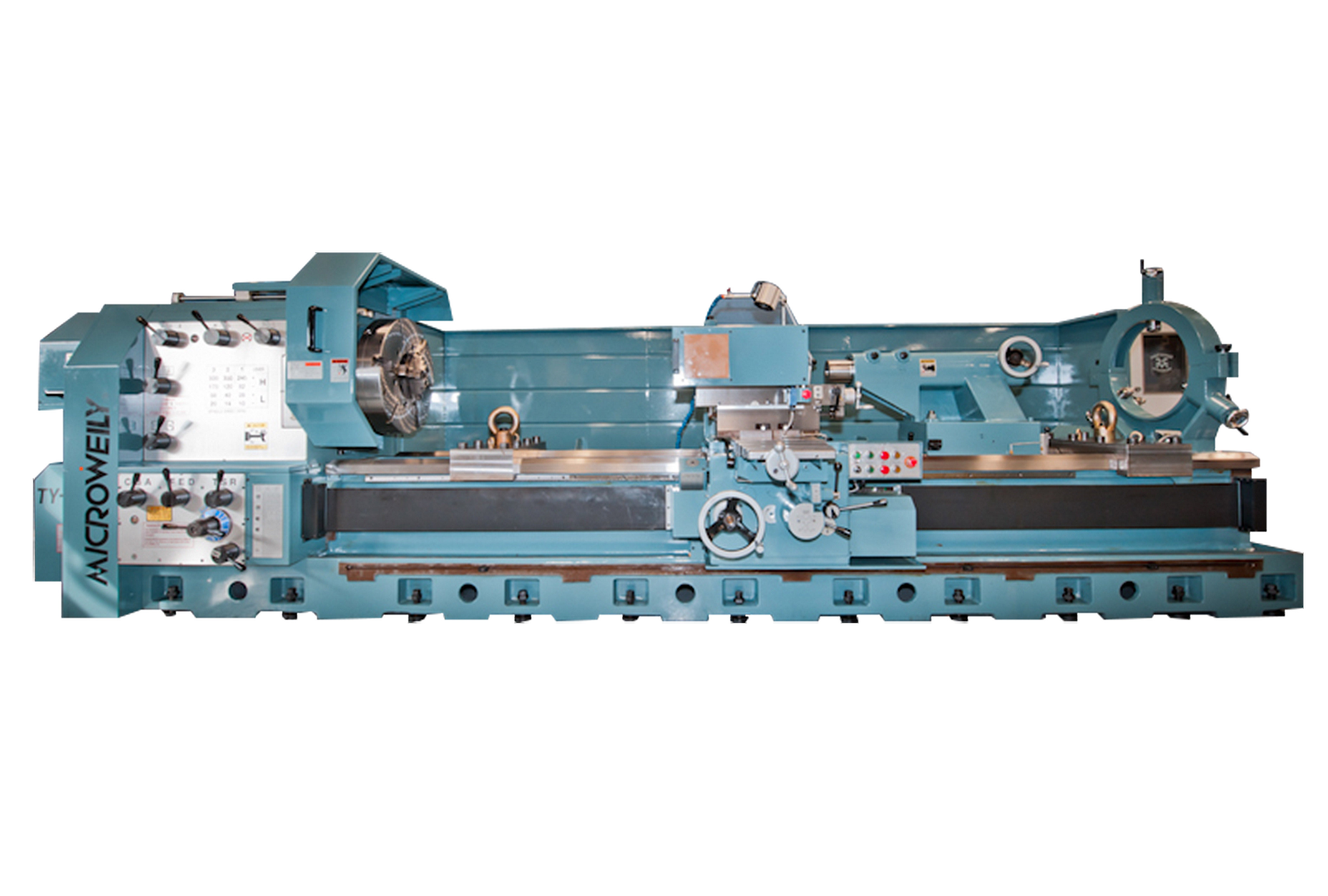

TY-34,38,42

SERIES

34

38

42

MODEL

3480/34120/34160/34200/34240

3880/38120/38160/38200/38240

4280/42120/42160/42200/42240

Swing over bed

870mm (34")

970mm (38")

1070mm (42")

Swing over cross slide

640mm (25.10")

740mm (29.10")

840mm (33.05")

Center height

450mm (17.71")

500mm (19.68")

550mm (21.65")

Between center

2000mm (78.74") / 3000mm (118.11") / 4000mm (157.48") / 5000mm (196.85") / 6000mm (236.22")

Bed width

560mm (22")

Bed length

4350mm (171.26") / 5350mm (210.63") / 6350mm (250") / 7350mm (289.37") / 8350mm (328.74")

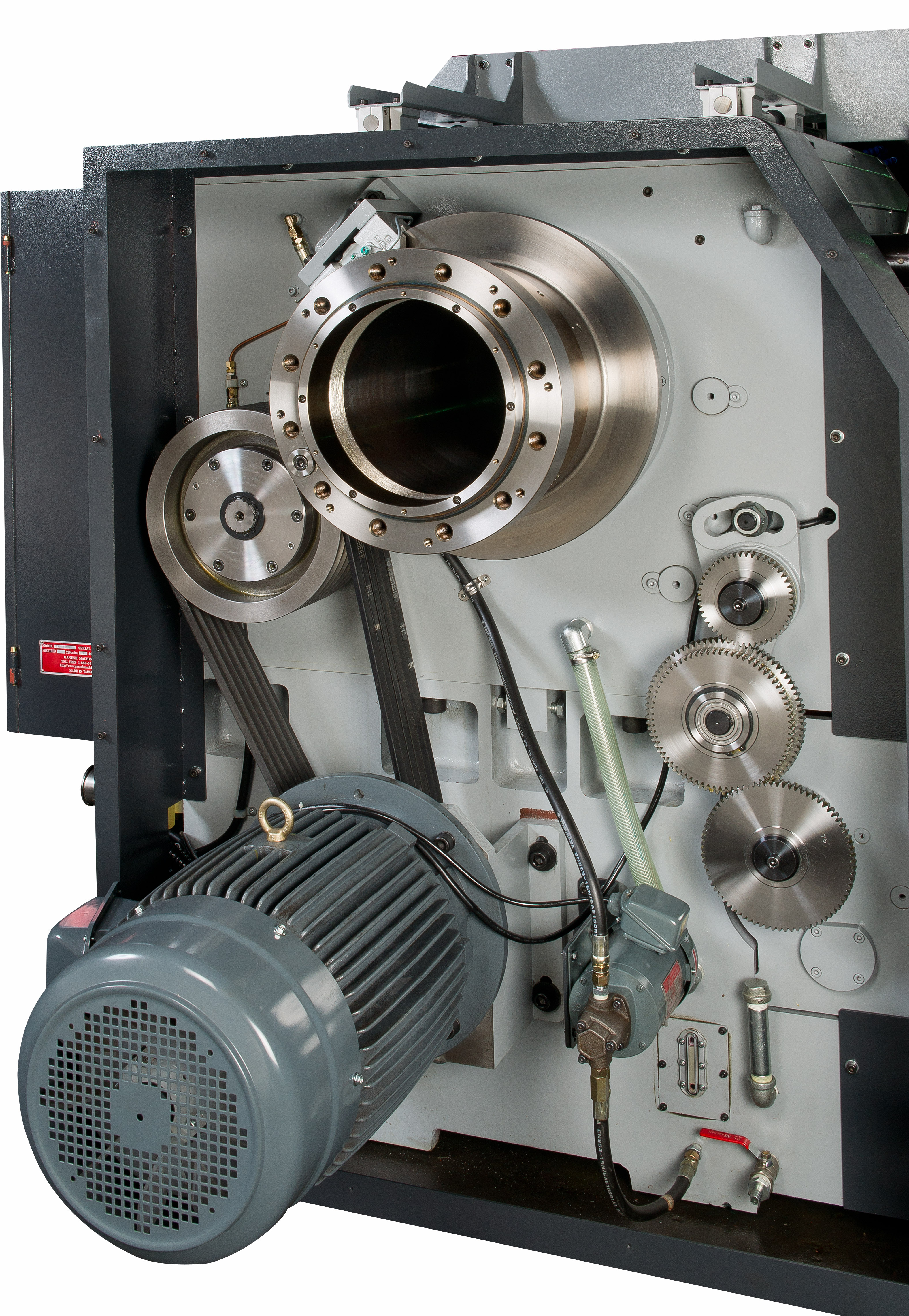

Spindle motor

20HP (Standard) / 25HP (Optional)

Coolant pump

1/4HP

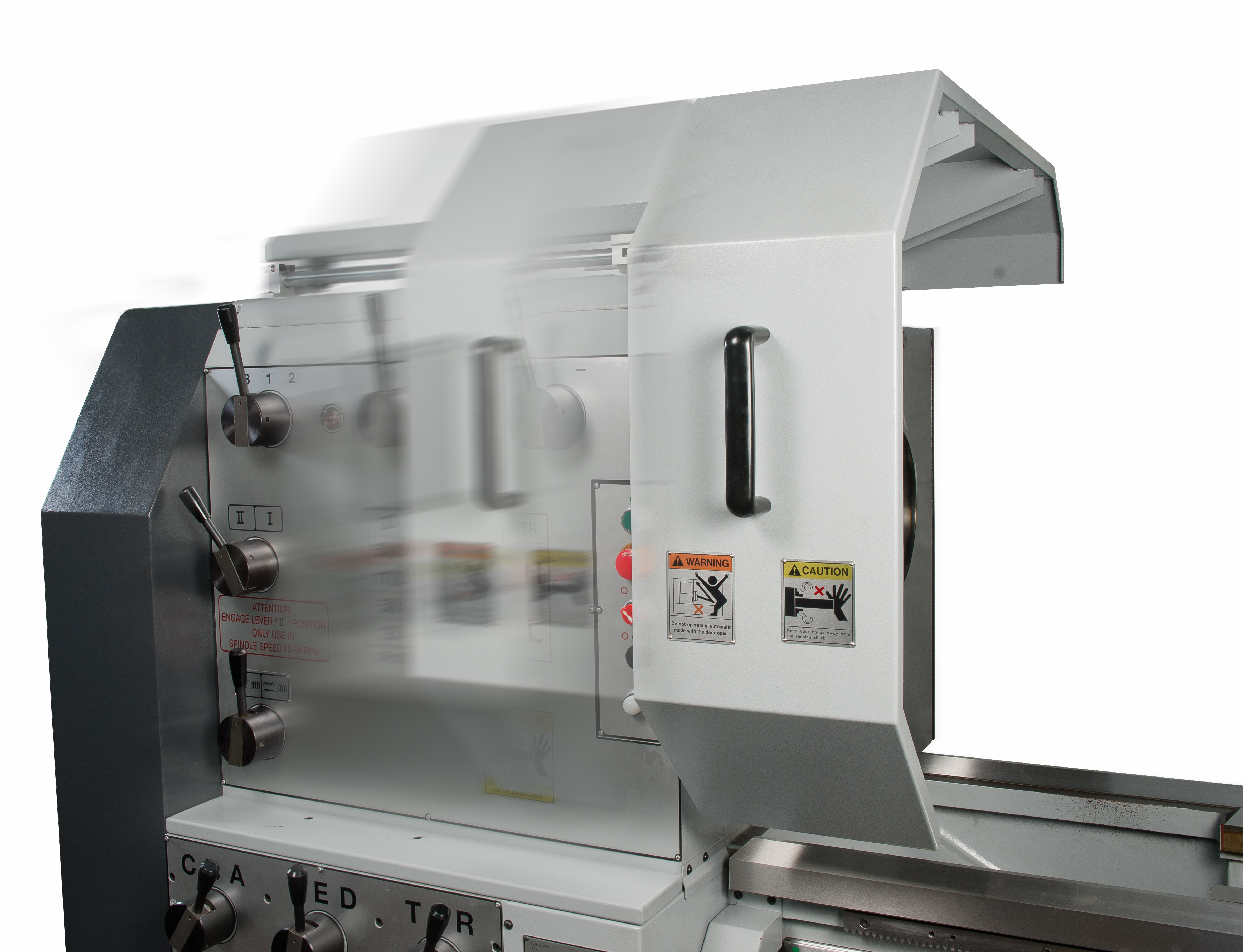

Spindle nose

A2-11 (Standard) / A2-15 (Optional)

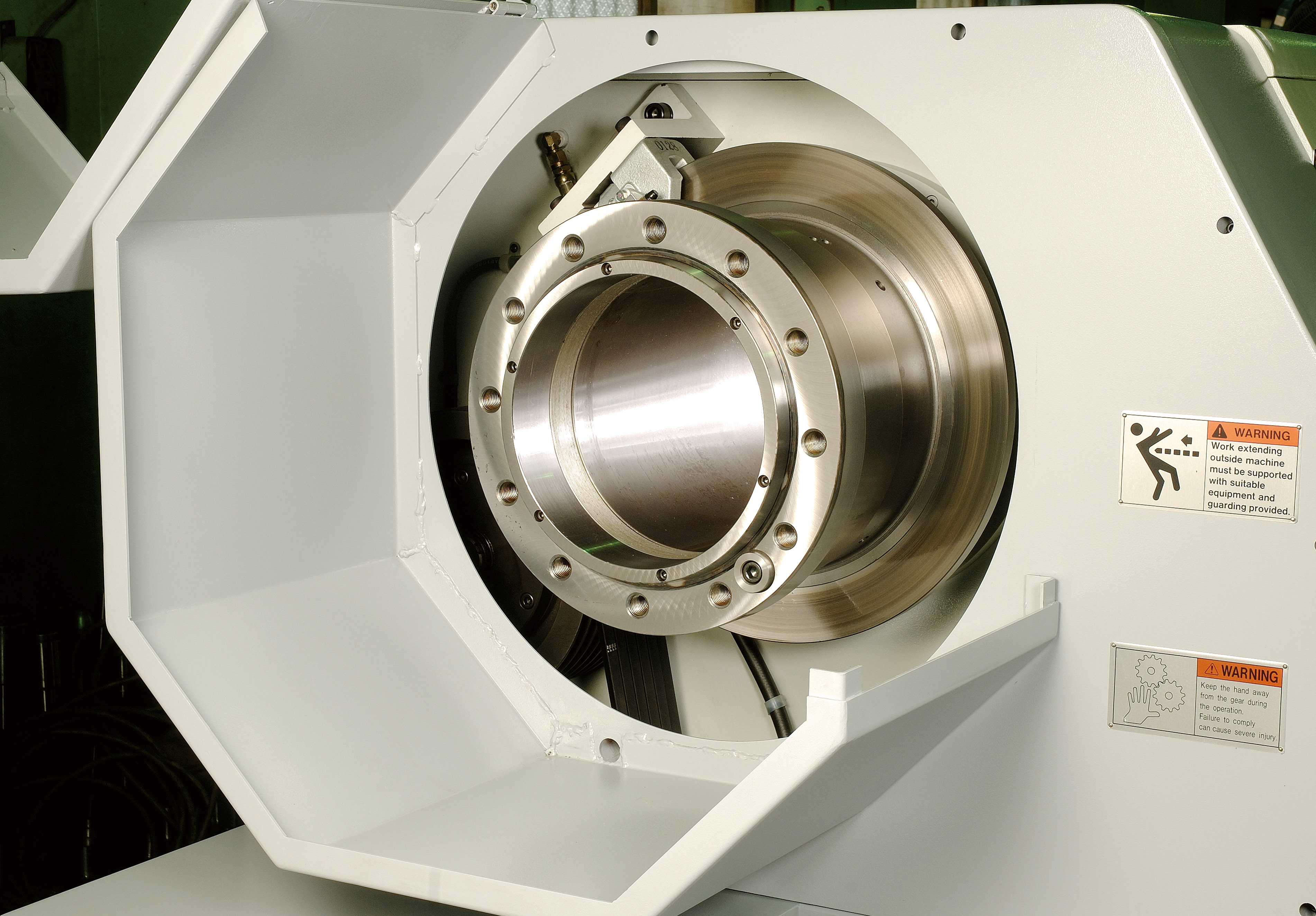

Spindle bore

170mm (6.70", Standard) / 255mm (10", Optional)

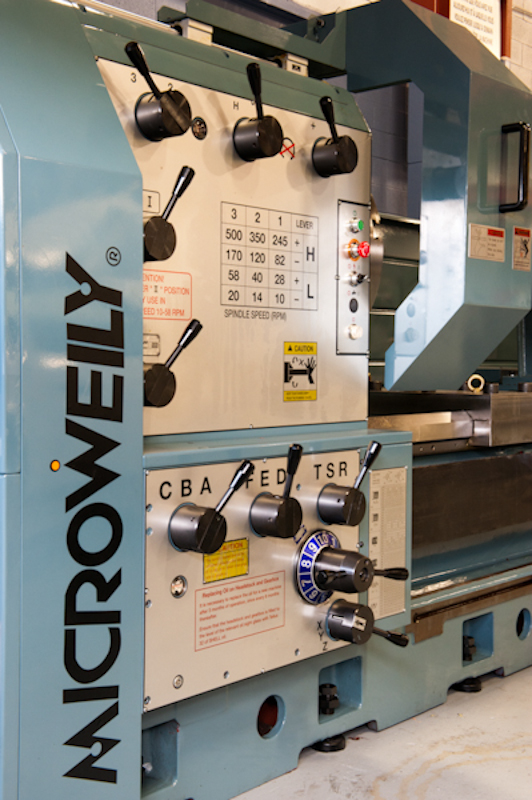

Spindle steps

12 Steps

Spindle range

10-500 r.p.m.

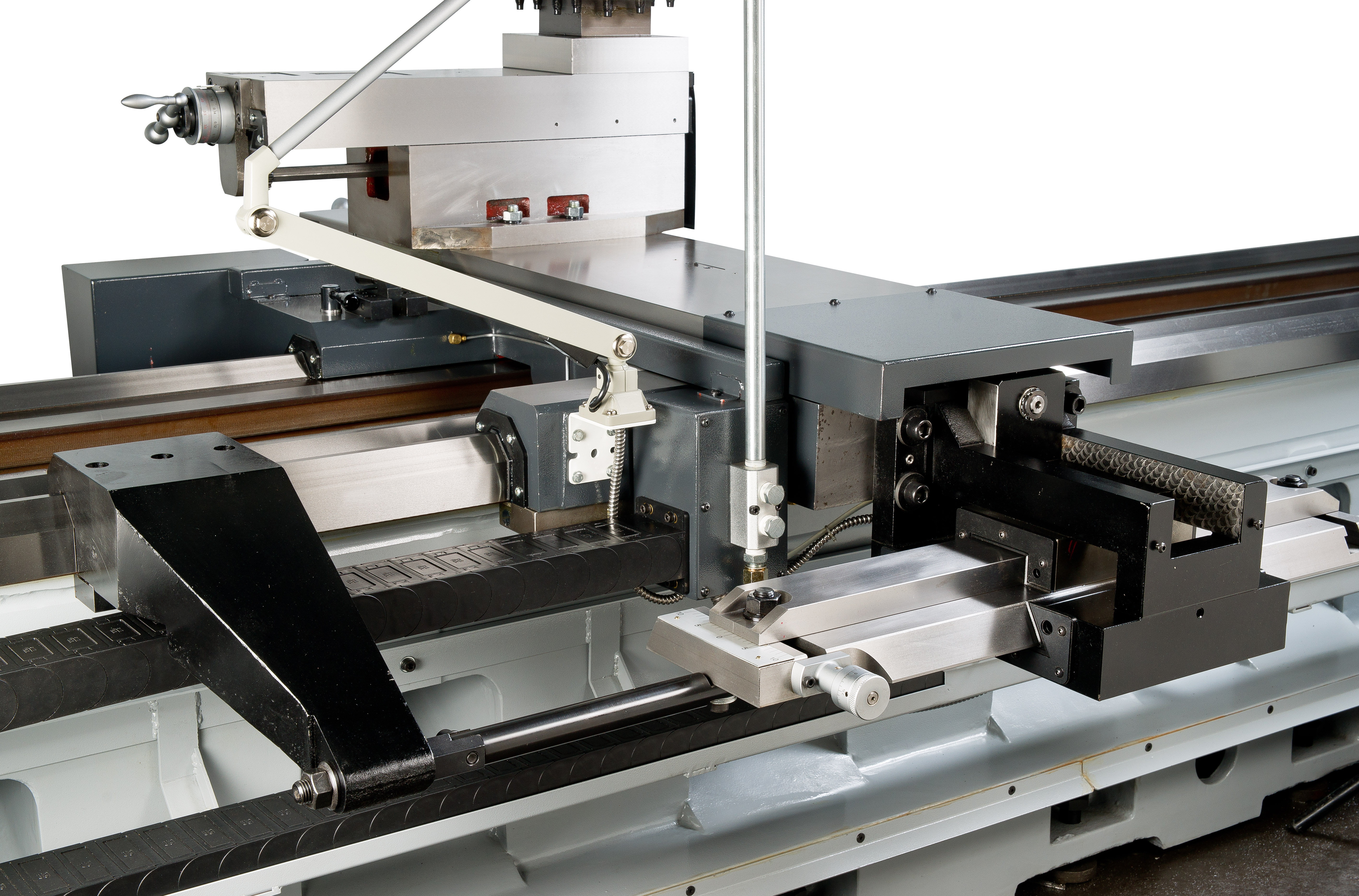

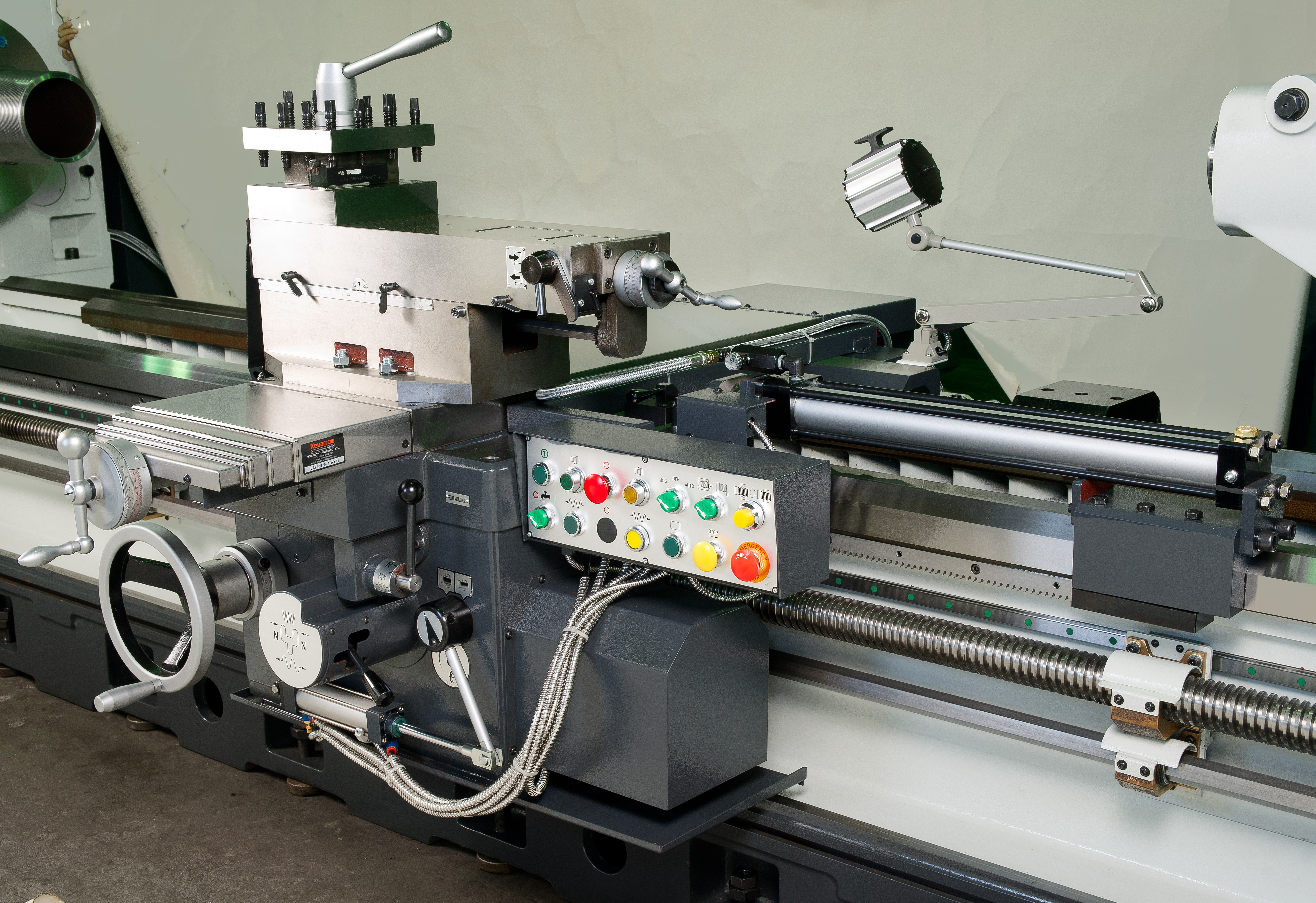

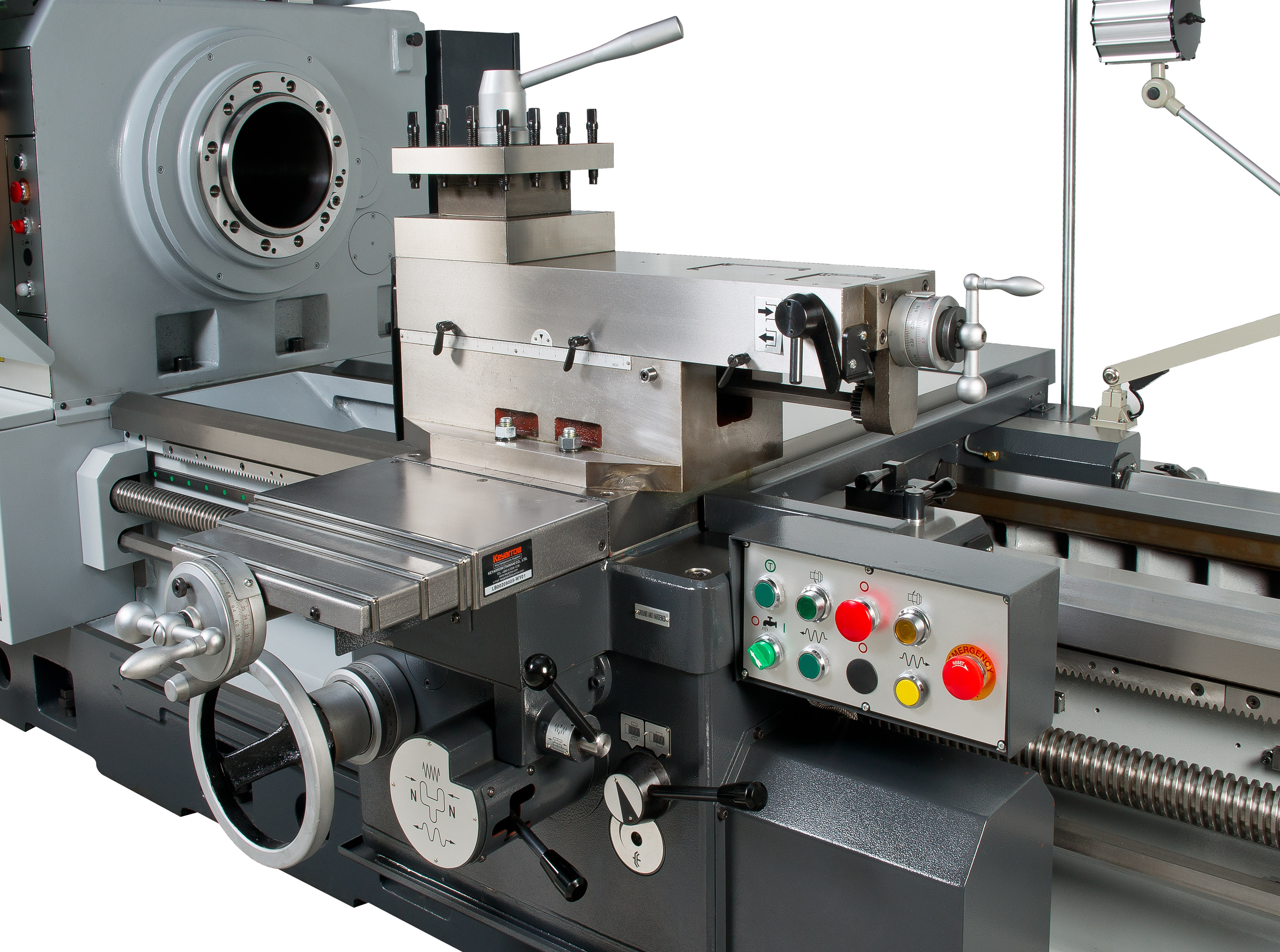

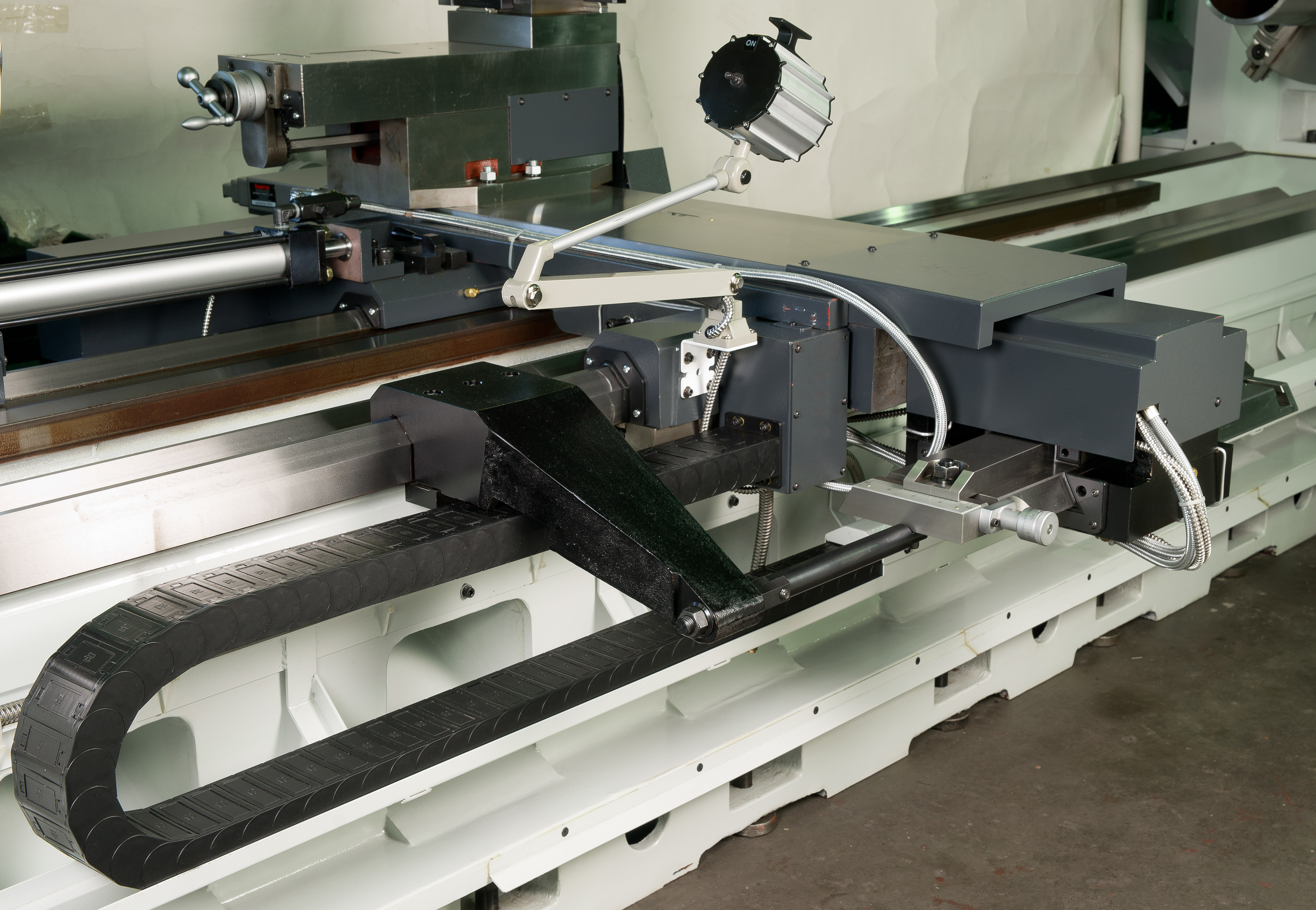

Cross slide width/travel

350mm (13.78") / 550mm (21.65")

Compound rest width/travel

200mm (7.87") / 360mm (14.17")

Leadscrew diameter/pitch

60mm (2.35") x Pitch 12mm (2 T.P.I.)

Longitudinal rapid traverse

1250mm/min (49.20"/min)

Cross rapid traverse

635mm/min (25"/min)

Feed & Threading
Imperial thread

55 Nos. 0.25-30 T.P.I.

Metric thread

68 Nos. 1-120mm

Diametral pitch threads

70 Nos. 2-120 D.P.

Module pitch threads

45 Nos. 0.25-30 M.P.

Longitudinal feeds

0.05-6.38mm/rev.

Cross feeds

0.025-3.04mm/rev.

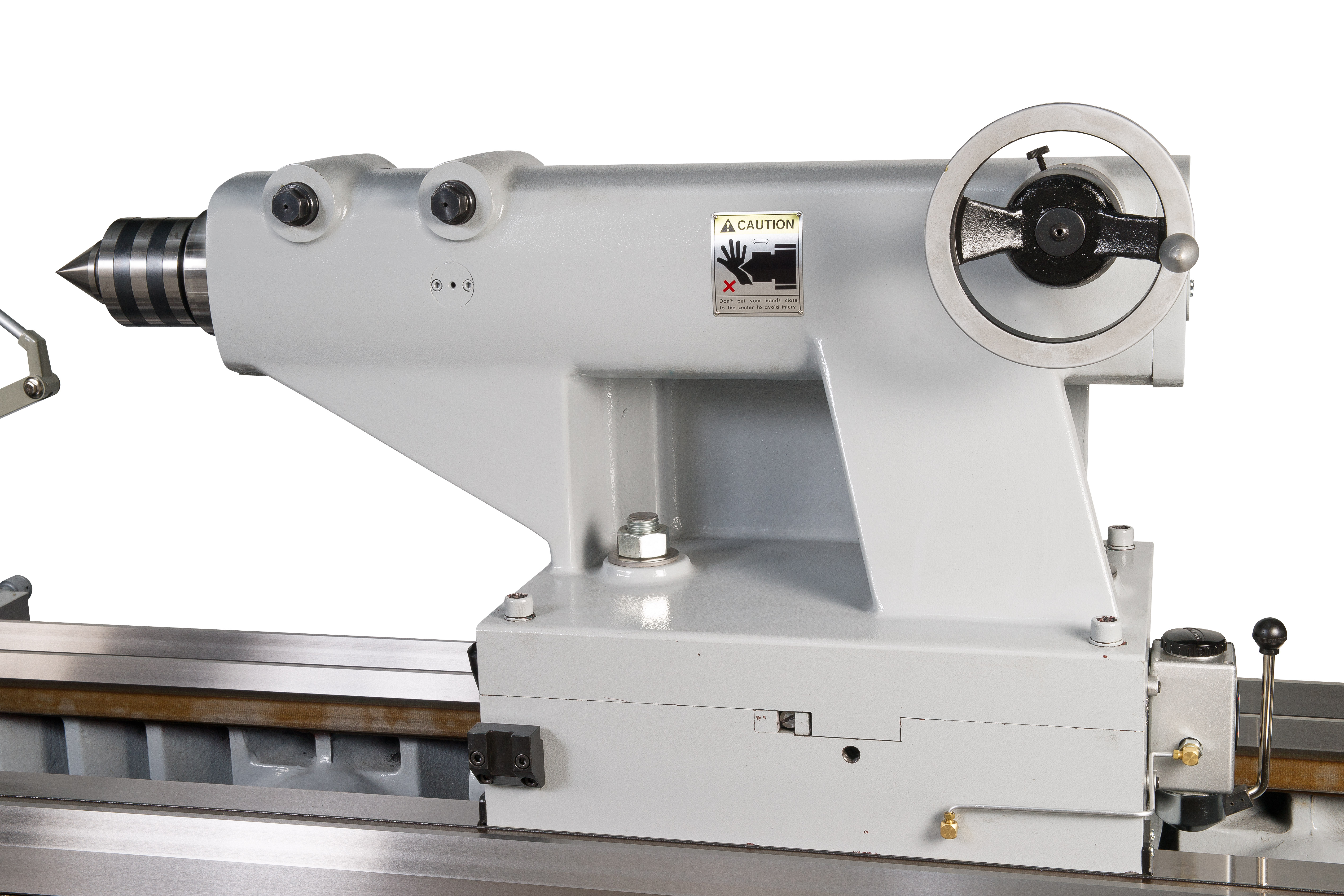

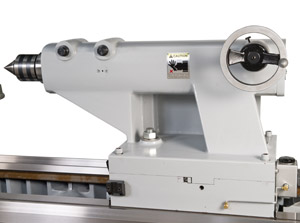

Tailstock quill diameter

125mm (4.90") (Standard) / 165mm (6.50") (Optional)

Tailstock quill travel/taper

250mm (9.84") / MT #6

Machine length

5115mm (201.38") / 6115mm (240.75") / 7115mm (280.12") / 8115mm (319.49") / 9115mm (358.86")

Machine width

2220mm (87.40")

Machine height

1510mm (59.45")

1560mm (61.42")

1610mm (63.38")

Net weight

10000kgs / 11000kgs / 12000kgs 13000kgs / 14000kgs

10600kgs / 11600kgs / 12600kgs 13600kgs / 14600kgs

11200kgs / 12200kgs / 13200kgs
14200kgs / 15200kgs

Gross weight

11000kgs / 12000kgs / 13000kgs 14000kgs / 15000kgs

12600kgs / 13600kgs / 14600kgs
15600kgs / 16600kgs

13200kgs / 14200kgs / 15200kgs
16200kgs / 17200kgs

Packing dimension
(L x W x H)

206" x 90" x 88"/250" x 90" x 88"/293" x 90" x 88"/340" x 90" x 88"/385" x 90" x 88"
