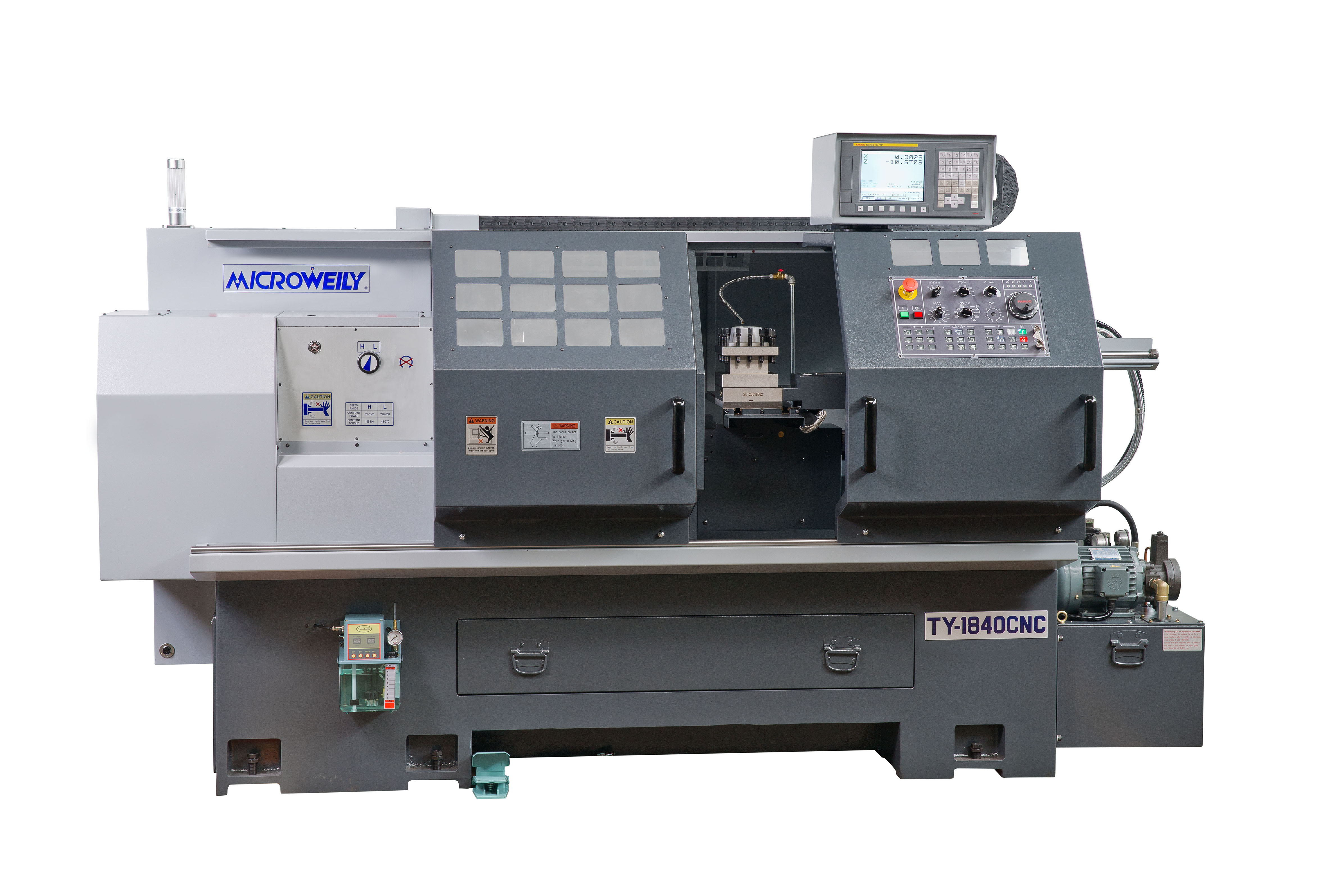

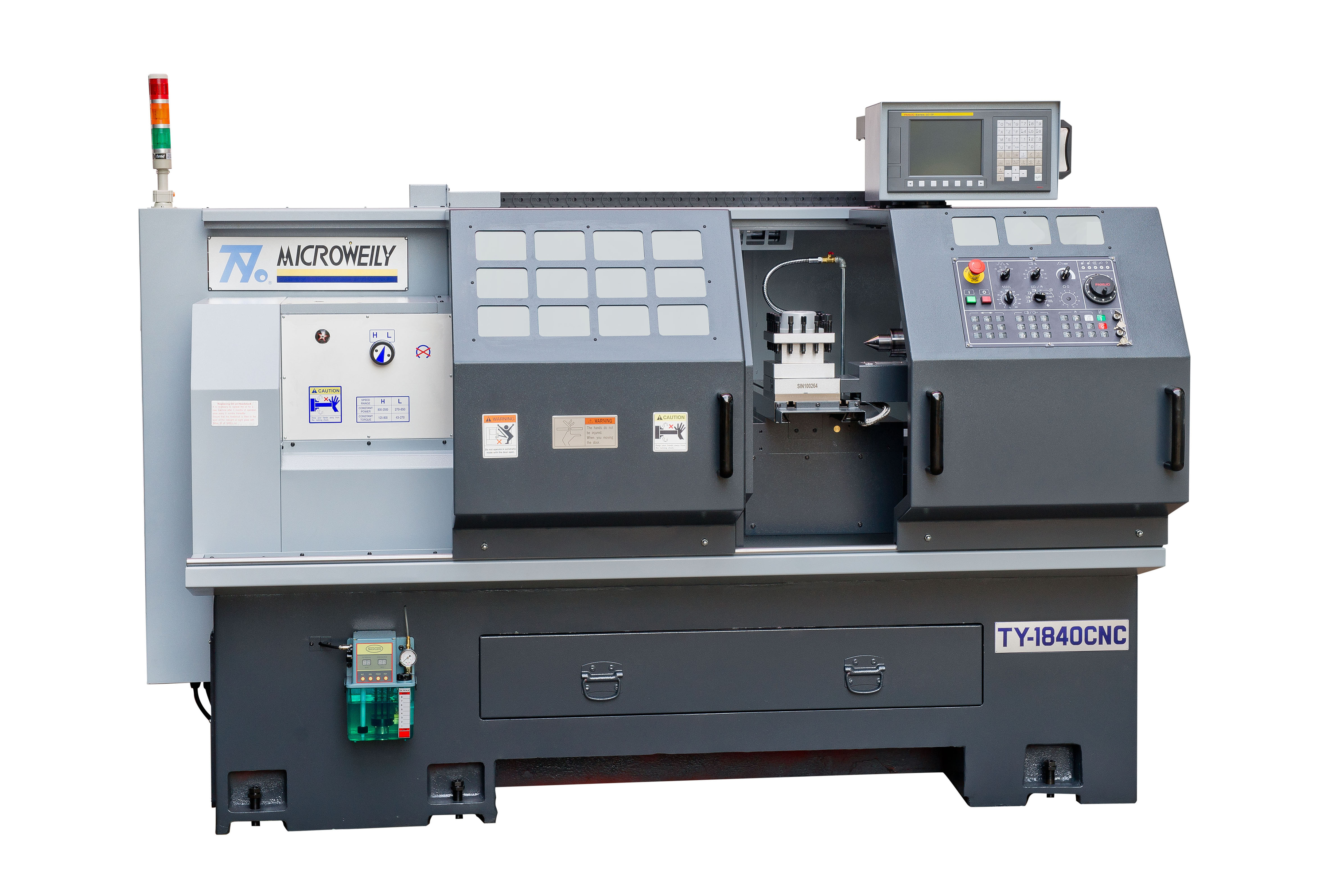

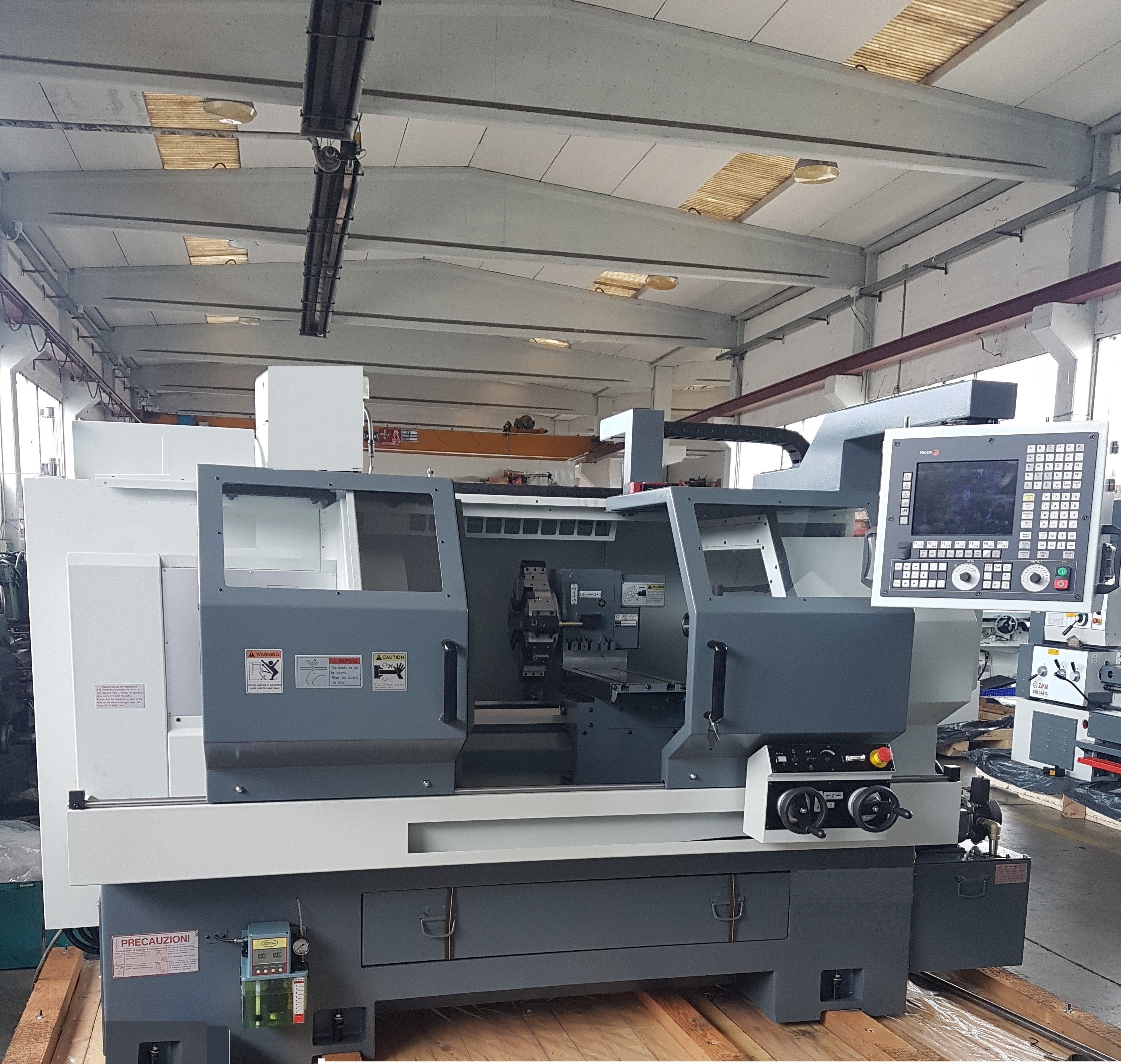

TY-18/20CNC HIGH SPEED PRECISION LATHE
SPECIFICATION

SERIES

18CNC

20CNC

MODEL

1840CNC/1860CNC

2040CNC/2060CNC

Swing over bed

460mm (18")

510mm (20")

Swing over cross slide

230mm (9")

280mm (11")

Center height

230mm (9")

255mm (10")

Center admits between

1000mm (40") / 1500mm (60")

Bed width

370mm (14-1/2")

Bed length

2095mm (82-1/2") / 2595mm (102-1/8")

Bed height

340mm (13-3/8")

Motor for main spindle

10HP

Motor for coolant pump

1/4HP

Spindle speed range



STANDARD

OPTIONAL

STANDARD

Constant Torque

Constant Power

Constant Torque

Constant Power

Constant Torque

Constant Power

H

125-800

800-2500

100-1000

1000-4000

80-500

500-1600

M

43-270

270-850





L

14-90

90-275

30-200

200-640

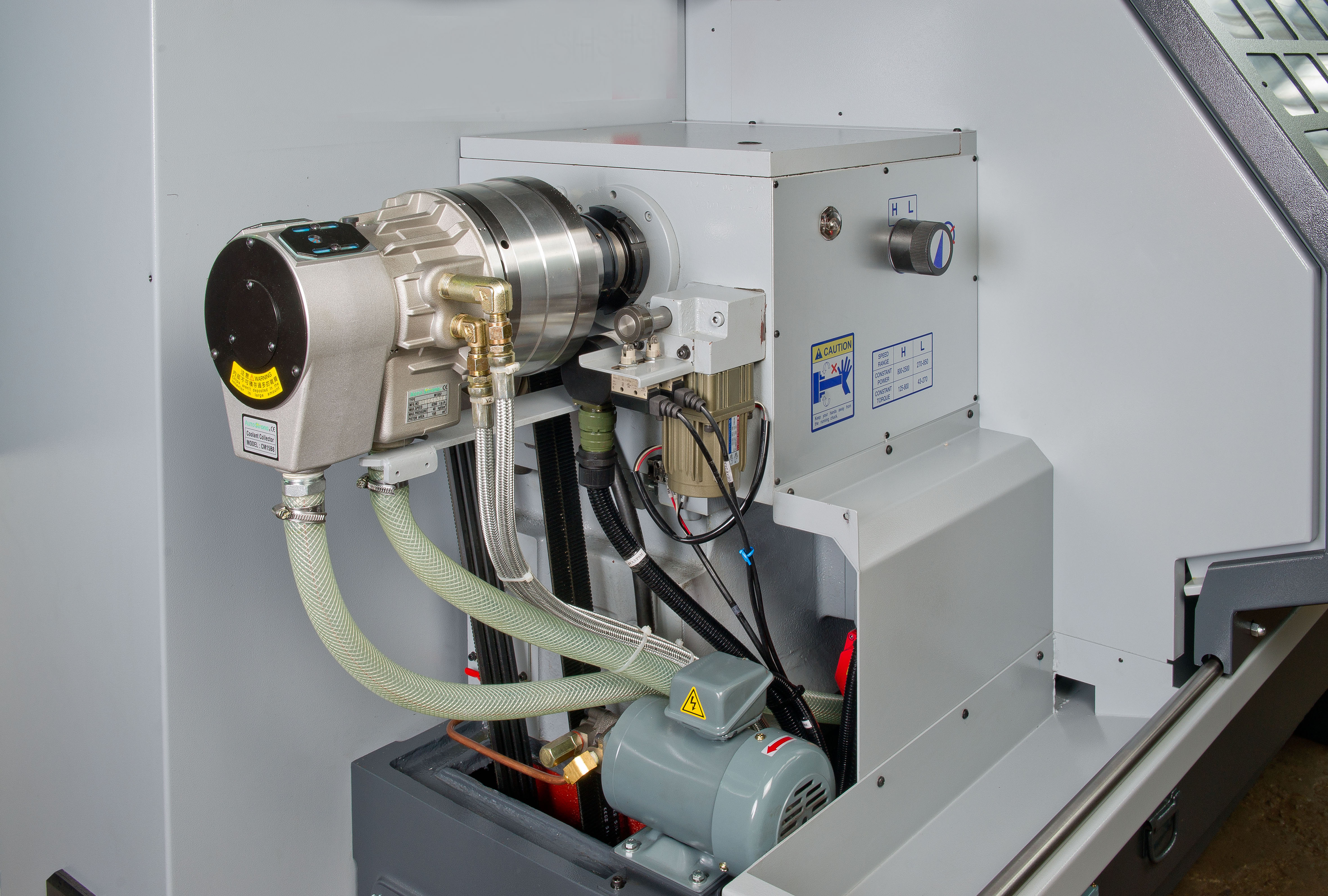

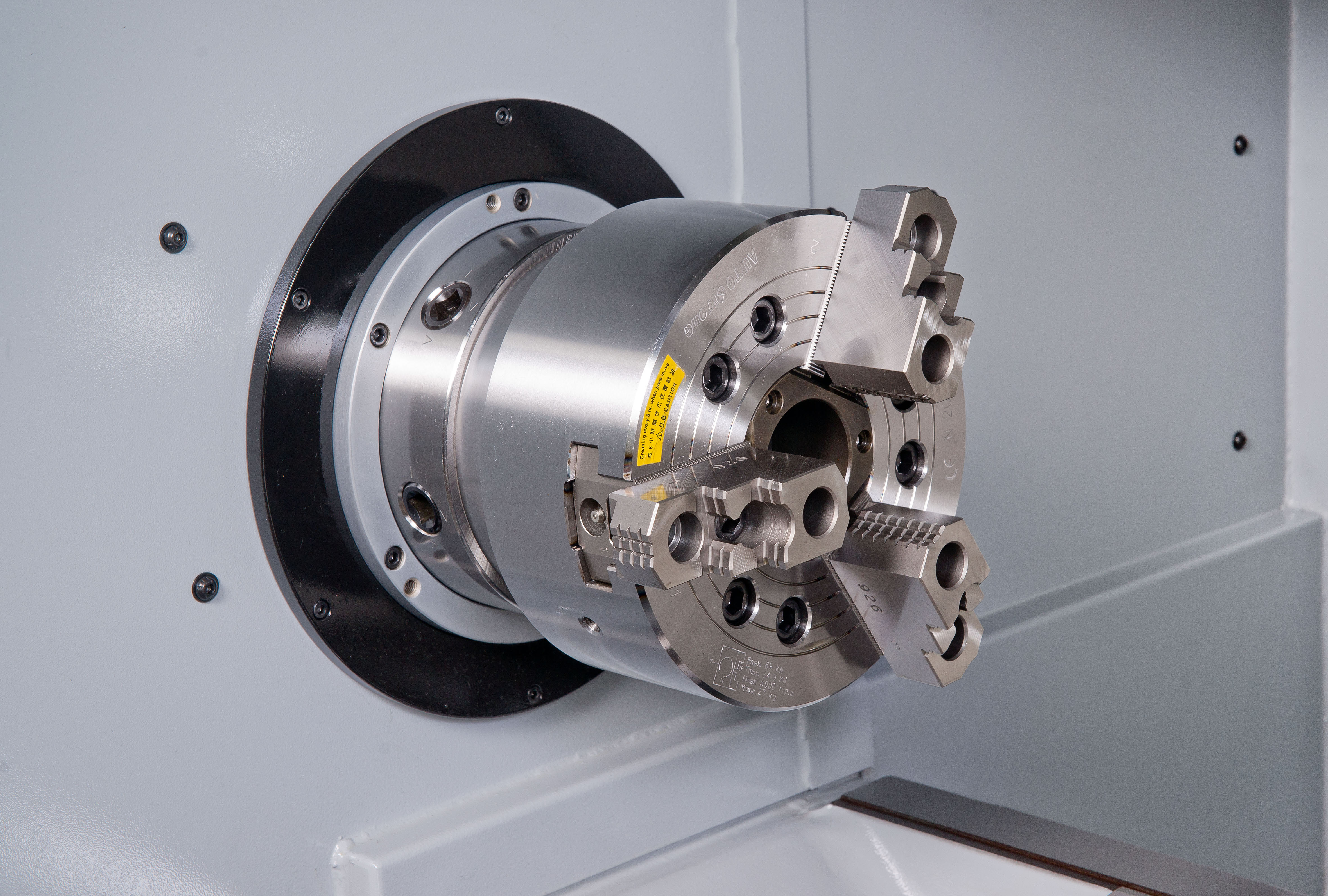

Spindle nose

D1-6 (Std.) , A2-6 (Speed 4000 r.p.m.) (Optional)

D1-8

Spindle taper in nose

MT No.6

ψ92 x 1/20 Taper

Spindle bore

60mm (2-3/8")

86mm (3-3/8")

Longitudinal travel (Z-axis)

980mm (38-37/64") 2040CNC / 1480mm (58-17/64") 2060CNC

Cross slide travel (X-axis)

270mm (10-5/8")

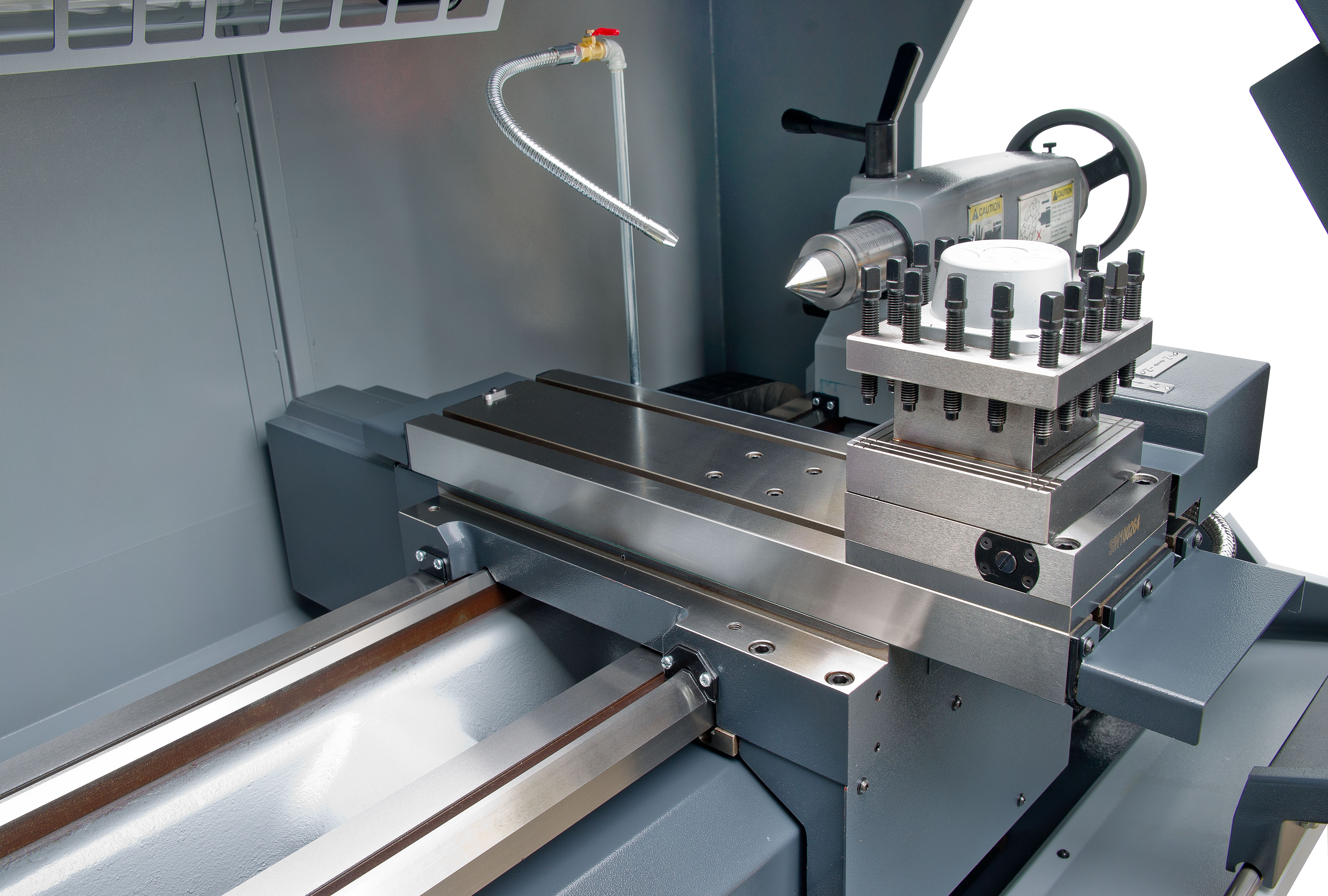

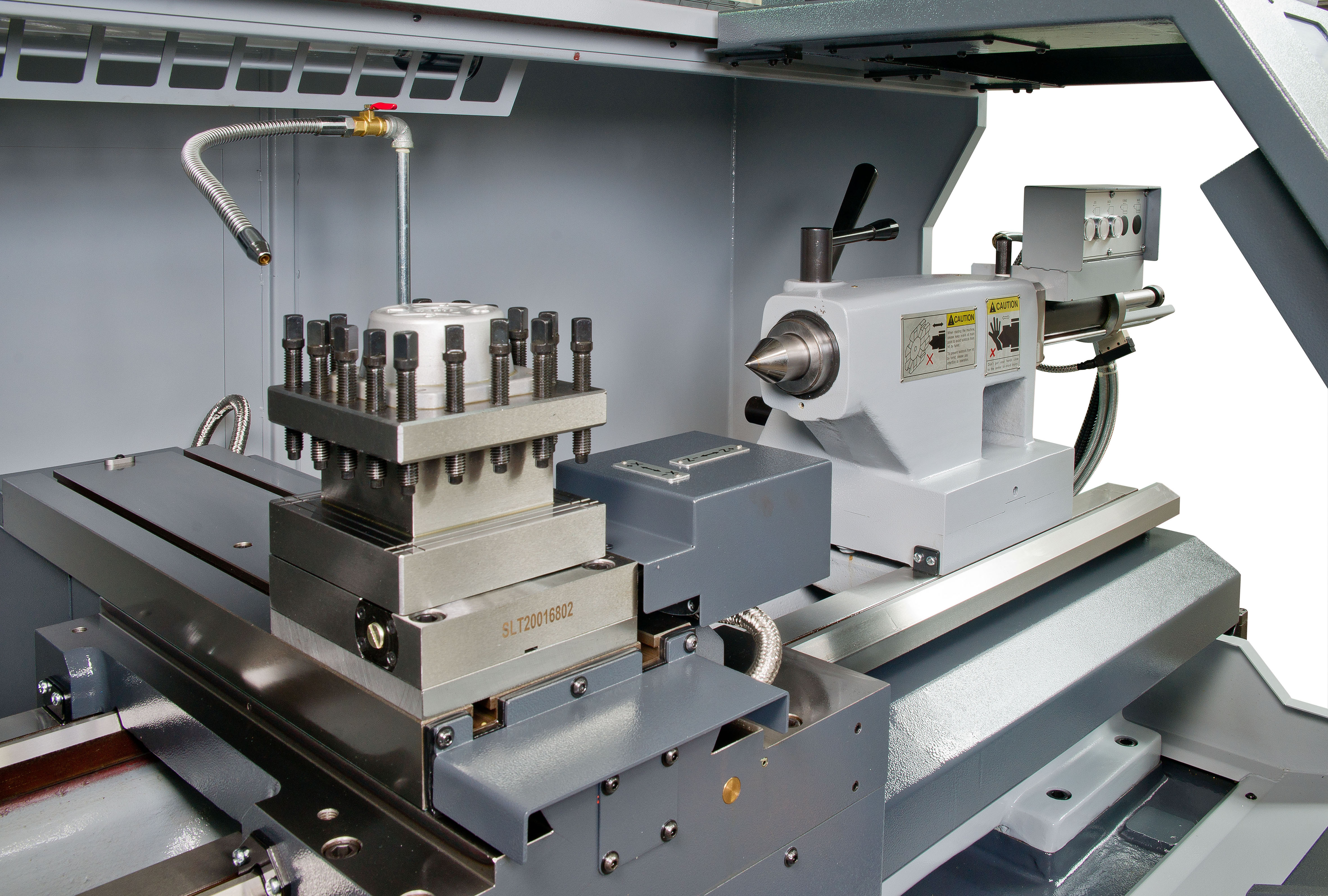

Cross slide dimension

700mm (27-1/2") x 210mm (8-1/4")

Ballscrew diameter X-axis

25mm (31/32")

Ballscrew diameter Z-axis

32mm (1-1/4")

Servo motor for X, Z-axis

1.0 KW

Rapid traverse X-axis

10m/min

Rapid traverse Z-axis

12m/min

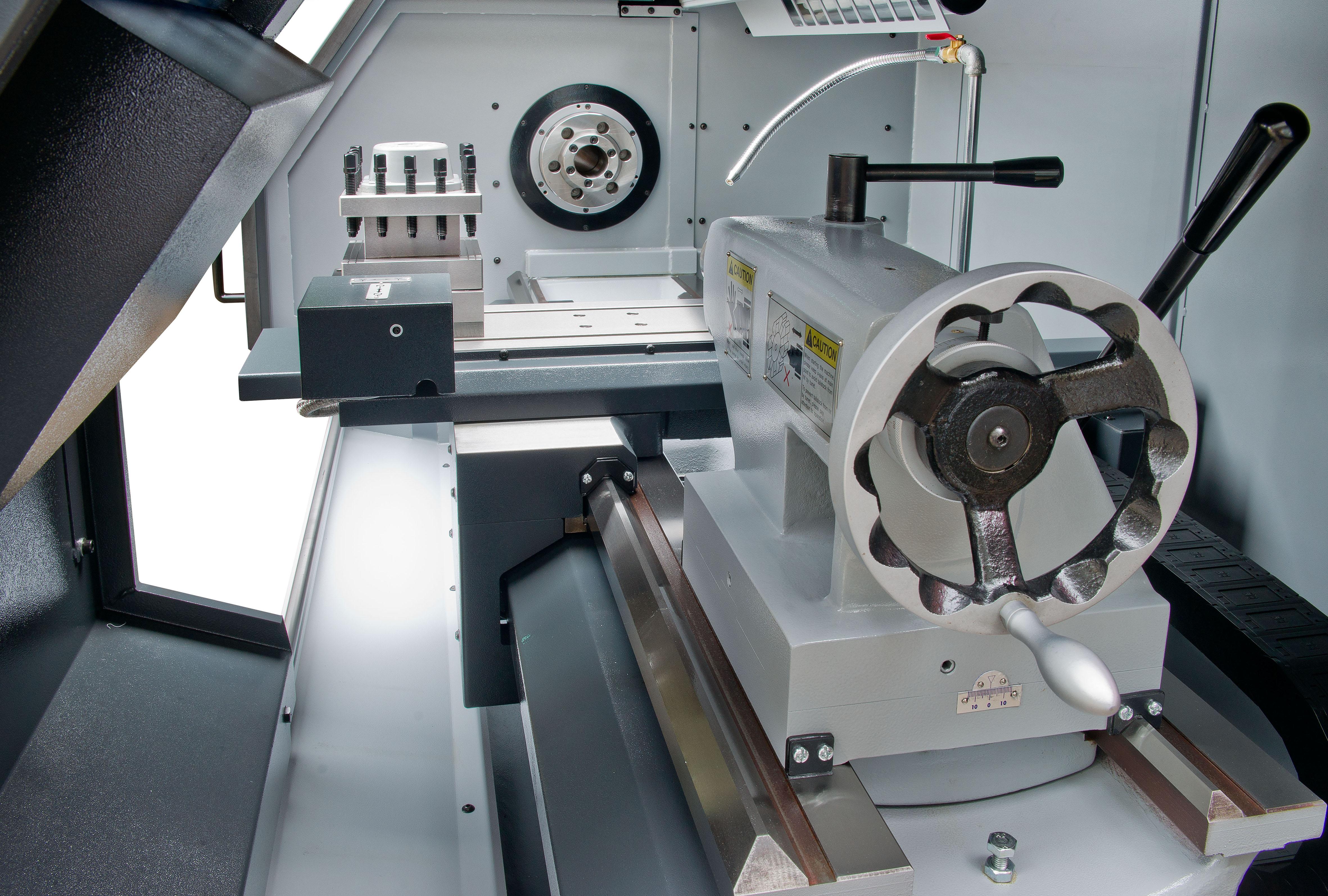

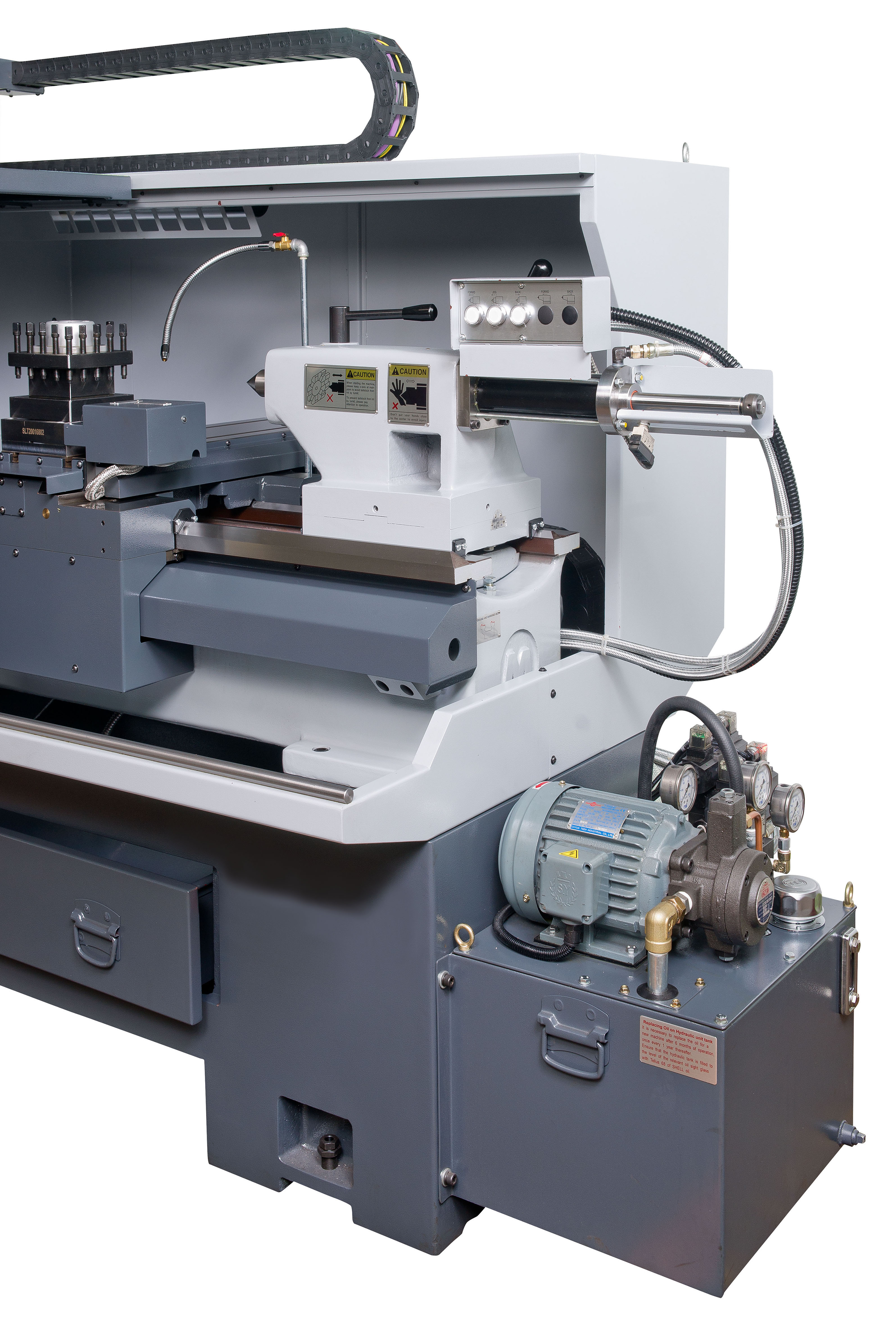

Tailstock quill diameter

75mm (2-15/16")

Tailstock quill travel

160mm (6-5/16")

Tailstock quill taper

MT No.5

Machine weight

2300kgs / 2600kgs

2600kgs / 2800kgs

Machine length

2525mm (99-2/5")  /  3025mm (119-1/8")

Machine width

1400mm (55")

Machine height

1840mm (72-1/2")

Gross weight

2600kgs / 2900kgs

3000kgs / 3200kgs

Packing dimension

108" x 73" x 78" / 143" x 73" x 78"

*Design and specifications are subject to change without notice.
