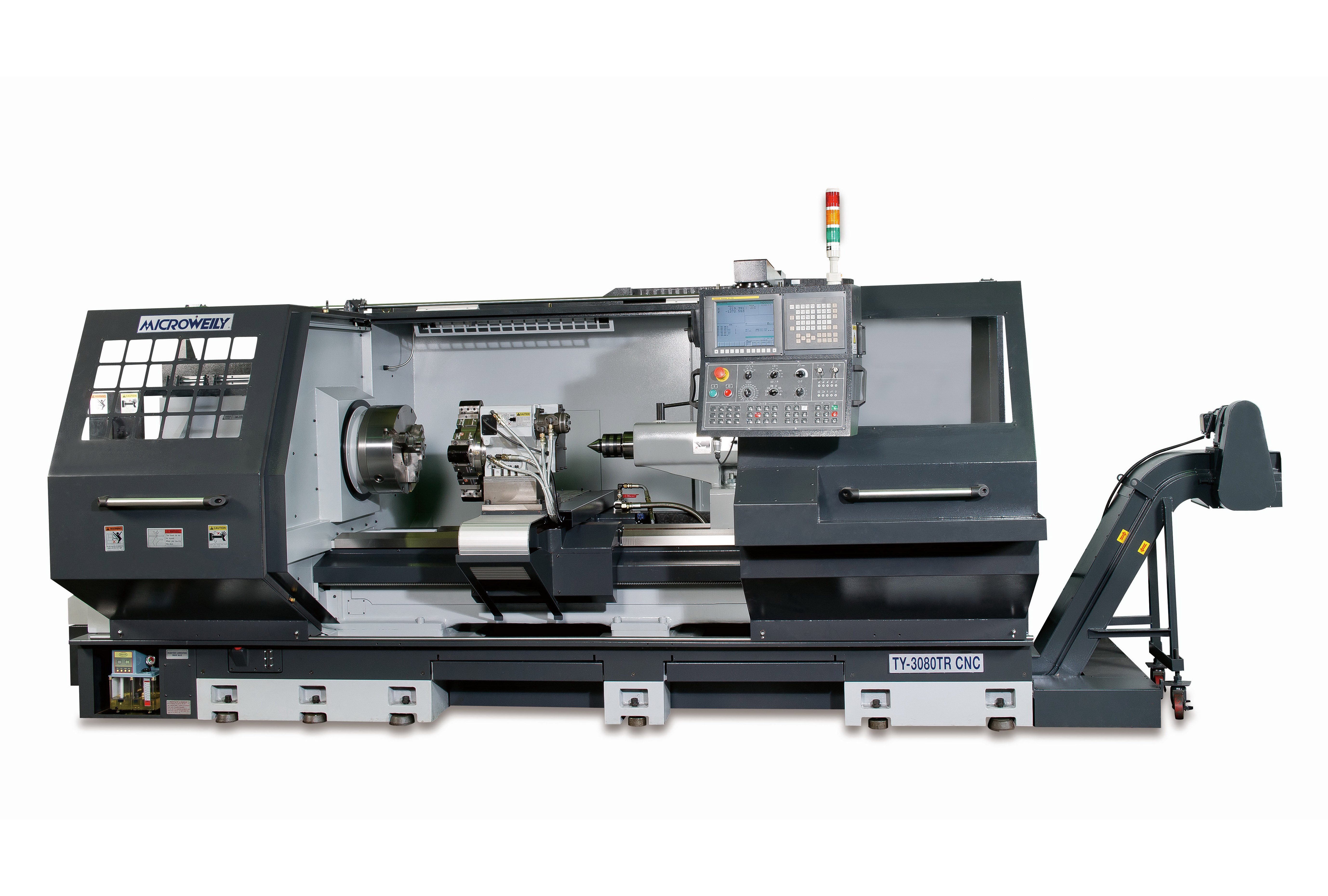

TY-26,30CNC

26TR/26NN

30TR

MODEL

2660/2680/26120/26160

3060/3080/30120/30160

Swing over bed

660mm (26")

760mm (30")

Swing over cross slide

380mm (15")

480mm (19")

Center height

330mm (13")

380mm (15")

Center admits between

1500mm (59") / 2000mm (78-3/4") / 3000mm (118") / 4000mm (157-1/2")

Bed width

460mm (18")

Bed length

3000mm (118") / 3500mm (137-3/4") / 4500mm (177") / 5500mm (216-1/2")

Bed height

400mm (15-3/4")

Motor for main spindle

20HP For spindle bore 105mm / 170mm
25HP For spindle bore 255mm (30TR series)

Motor for coolant pump

1/4HP

Spindle nose No./bearing type

D1-11/Taper roller bearing
A2-11/Cylindrical roller bearing

A2-11 or A2-15/Taper roller bearing

Spindle bore

105mm (4-1/8") for D1-11 or A2-11

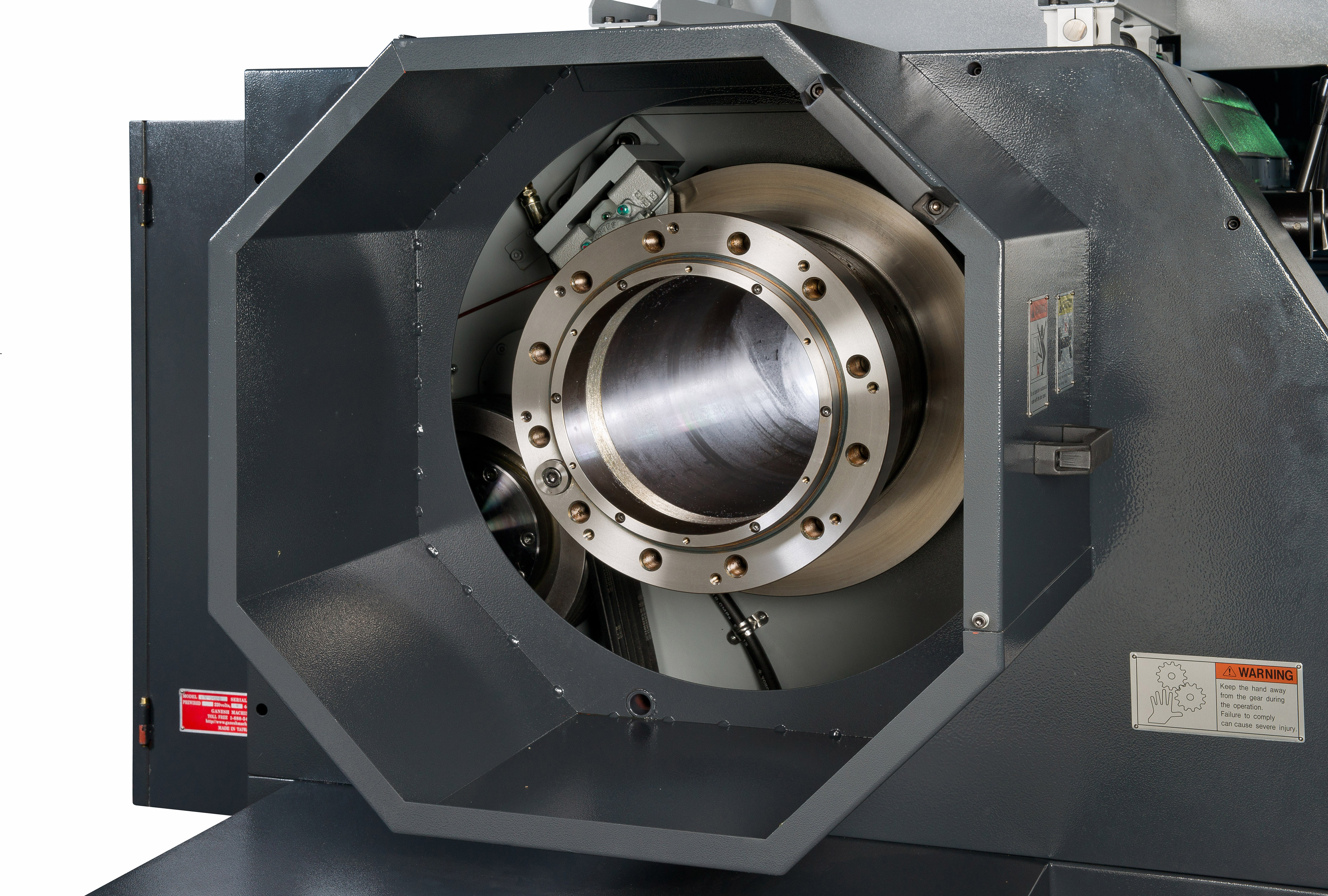

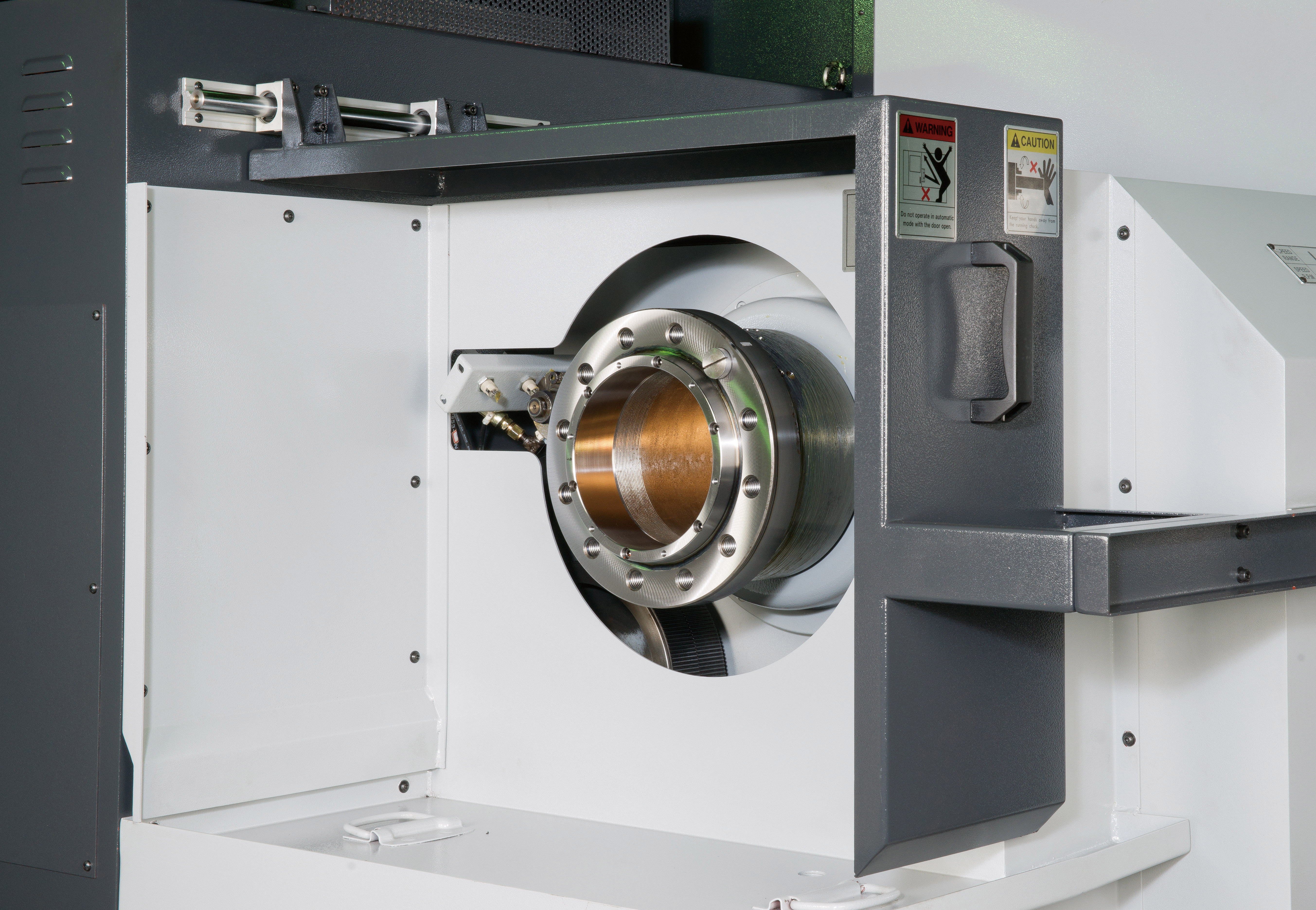

170mm (6-5/8") / 255mm (10")

Spindle speed

12-1200 r.p.m. (D1-11)
16-1600 r.p.m. (A2-11)

30-1000 r.p.m. (A2-11)
18-600 r.p.m. (A2-15)

Spindle taper in nose/sleeve

MT No.6

Longitudinal travel (Z-axis)

1500mm (59") / 2000mm (78-3/4") / 3000mm (118") / 4000mm (157-1/2")

Cross slide travel (X-axis)

500mm (19-5/8")

Cross slide dimension

1000mm (39-3/8") x 258mm (10-1/8")

Ballscrew diameter (X-axis)

32mm (1-1/4")

Ballscrew diameter (Z-axis)

50mm (2")

Servo motor for X-axis

AC 1.5 KW

Servo motor for Z-axis

AC 2.0 KW

Rapid traverse X, Z-axis

10m/min

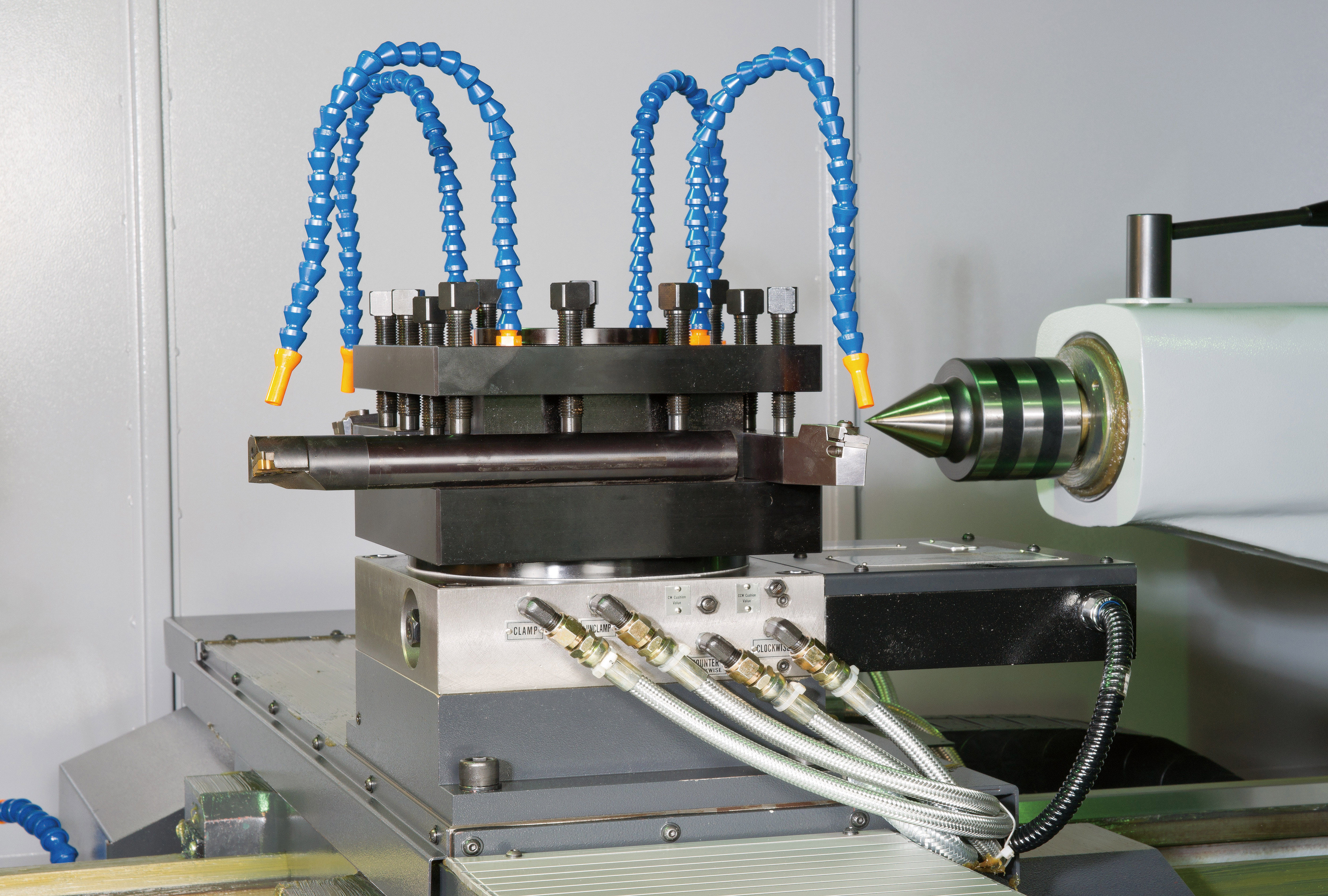

Tailstock quill diameter

90mm (3-1/2")

Tailstock quill travel

200mm (7-7/8")

Tailstock quill taper

MT No.5

Machine length

4200mm (165-3/8") / 4700mm (185") / 5700mm (224-1/2") / 6700mm (263-3/4")

Machine width

2000mm (78-3/4")

Machine height

1980mm (78") For 26" / 2030mm (80") For 30"

Packing dimension

176" x 90" x 88"/195" x 90"x 88"/235" x 90"x 88"/274" x 90"x 88"

Net weight

4200kgs / 4600kgs / 4900kgs / 5800kgs

Gross weight

5000kgs / 5400kgs / 5700kgs / 6600kgs
