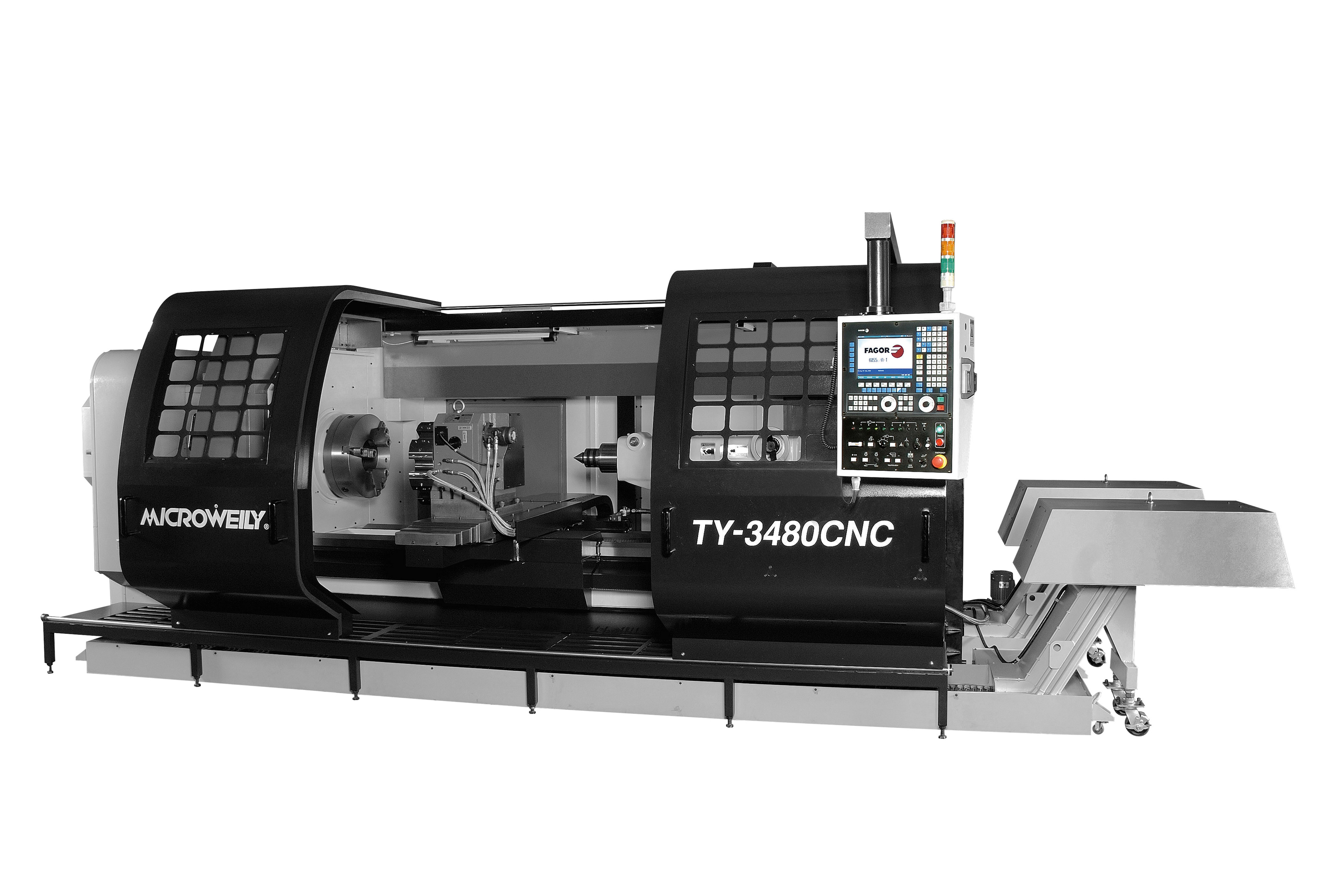

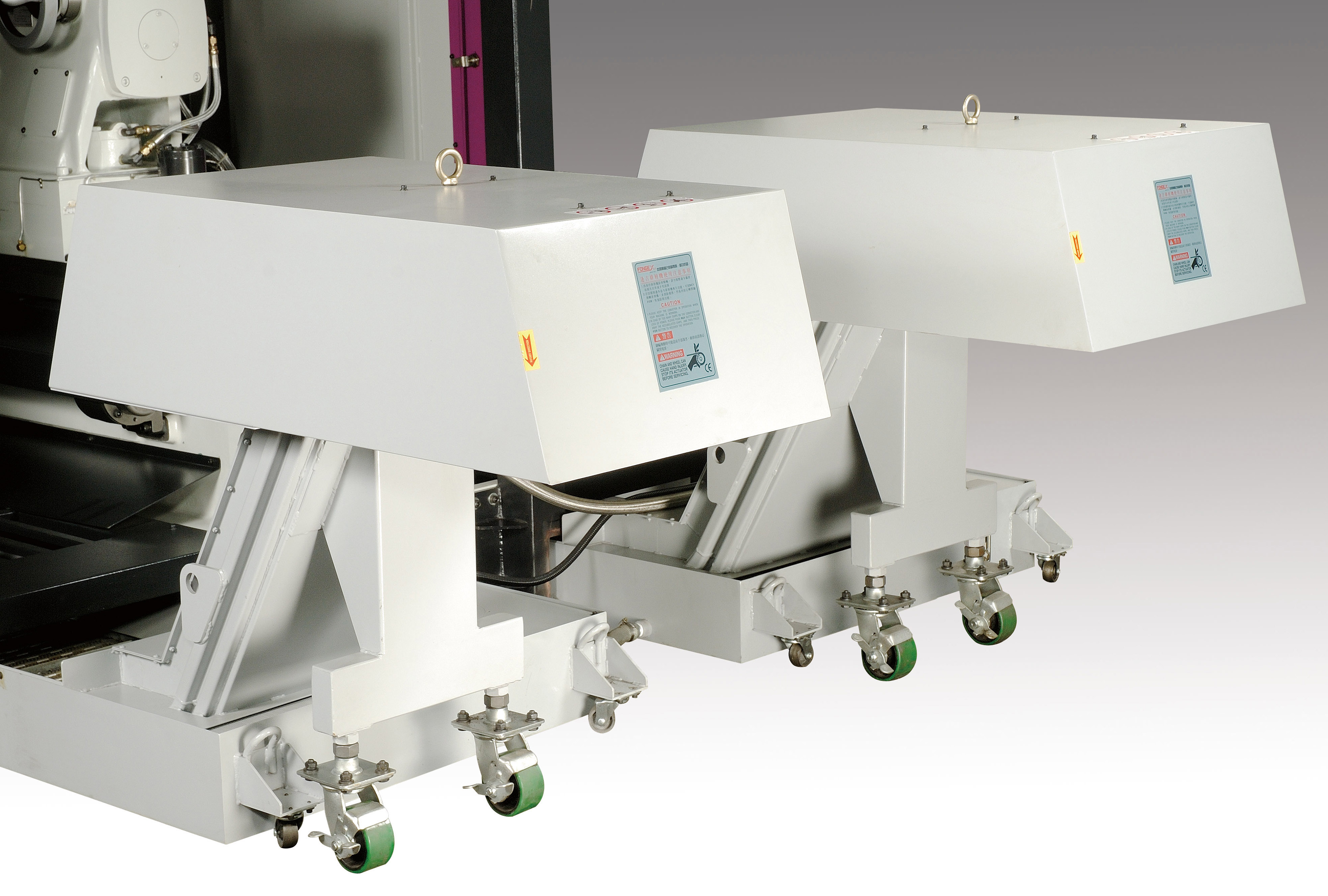

TY-34,38,42CNC

34CNC

38CNC

42CNC

Swing over bed

870mm (34-1/4")

970mm (38-3/16")

1070mm (42-1/8")

Swing over cross slide

510mm (20")

610mm (24")

710mm (27-15/16")

Center height

450mm (17-11/16")

500mm (19-11/16")

550mm (21-5/8")

Center admits between

2000mm (78-3/4") / 3000mm (118-1/8") / 4000mm (157-1/2") / 5000mm (196-7/8") / 6000mm (236-1/4")

Bed width

560mm (22")

Bed length

4350mm (171-1/4") / 5350mm (210-5/8") / 6350mm (250") / 7350mm (289-3/8") / 8350mm (328-3/4")

Motor for main spindle

25HP (Standard) / 30HP (Optional)

Motor for coolant pump

1/4HP (Standard) / 3/4HP (Optional)

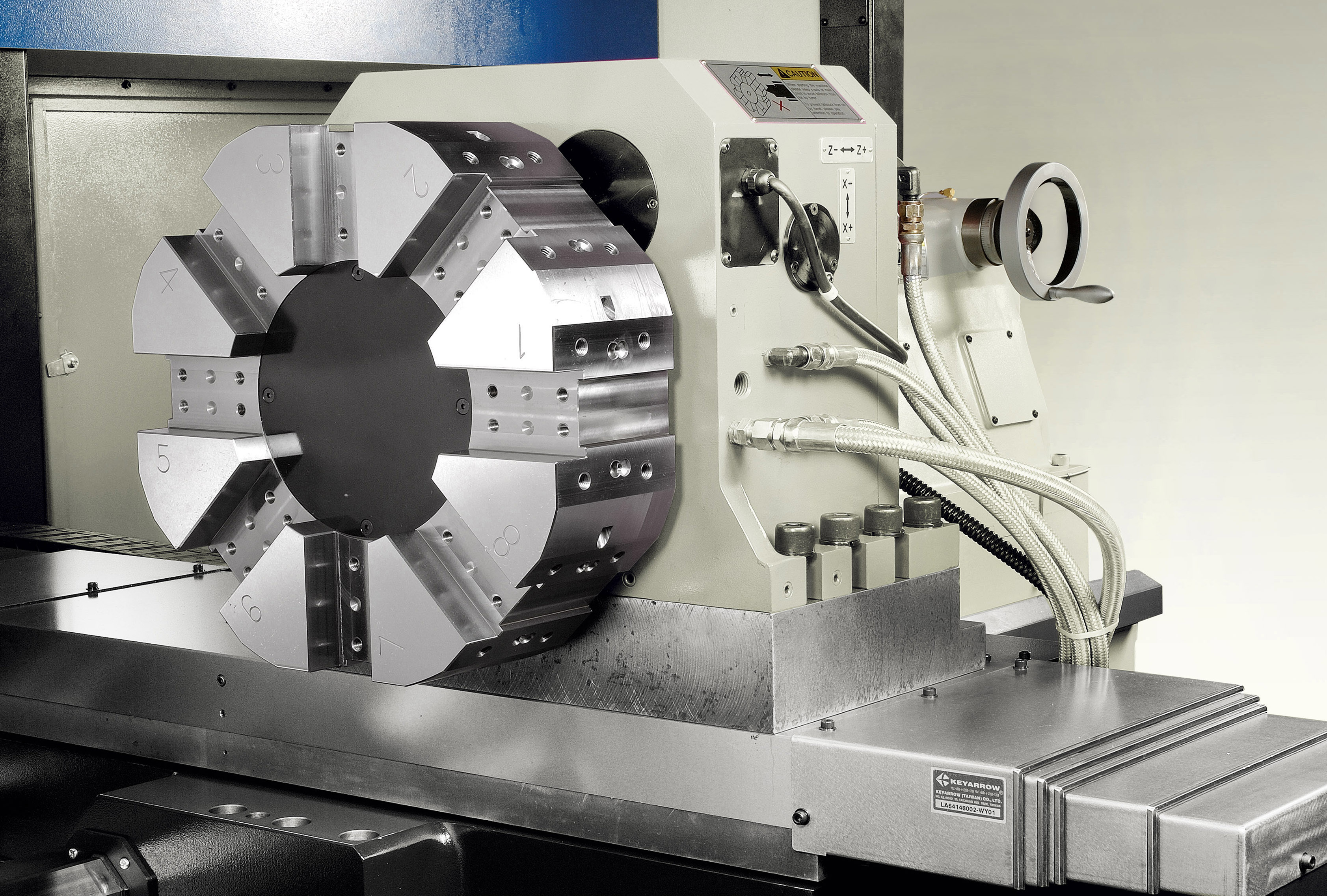

Spindle nose

A2-11 / A2-15 / A2-20

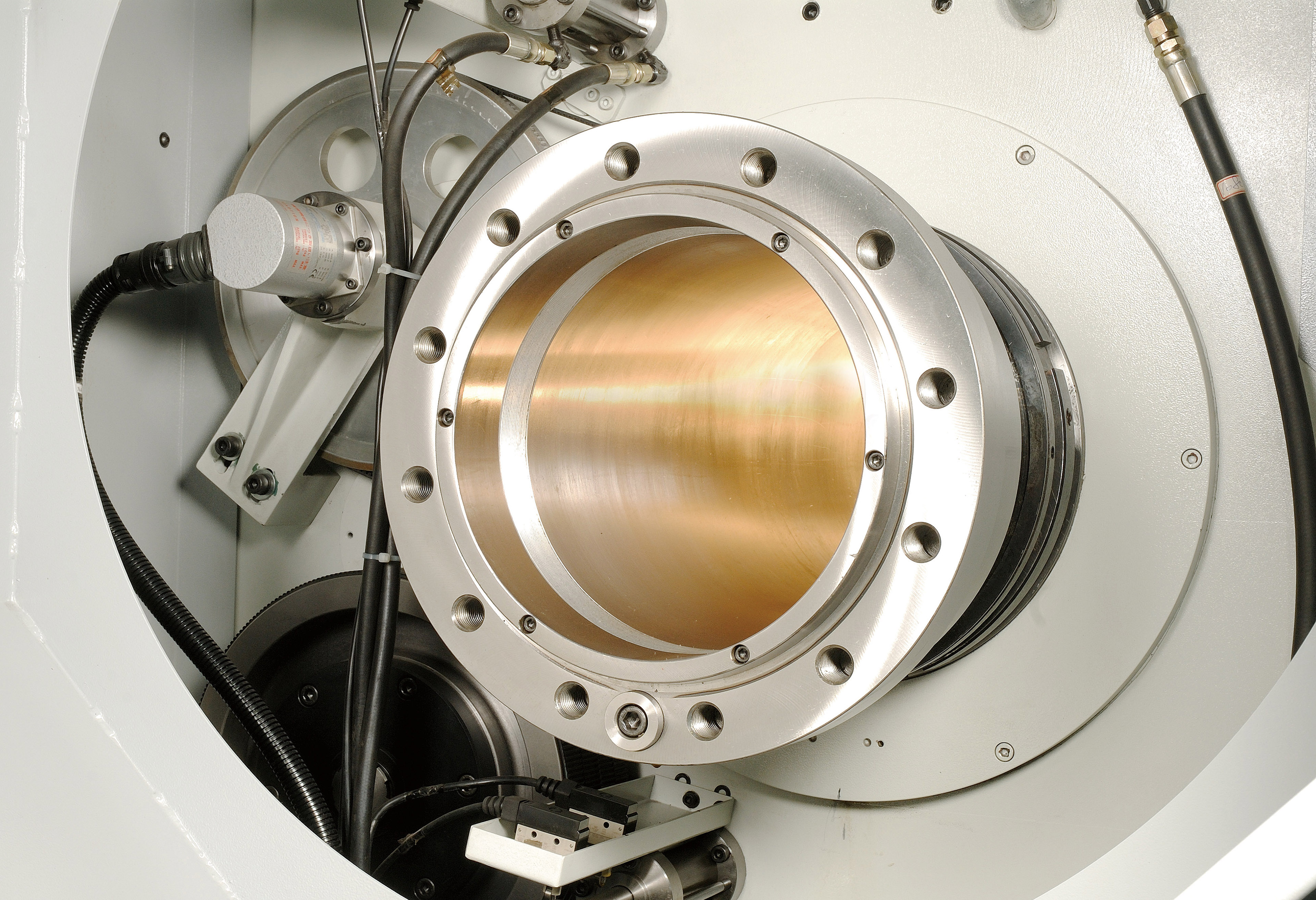

Spindle bore

170mm (6-11/16")

255mm (10-1/32")

355mm (13-31/32")

Spindle ranges

3 Steps

Spindle speed

5-550 r.p.m. (A2-11, A2-15) / 4-400 r.p.m. (A2-20)

Longitudinal travel (Z-axis)

2200mm (86-5/8") / 3200mm (126") / 4200mm (165-5/16") / 5200mm (204-23/32") / 6200mm (244")

Cross slide travel (X-axis)

550mm (21-21/32")

Cross slide dimension

1000mm (39-3/8") x 330mm (13")

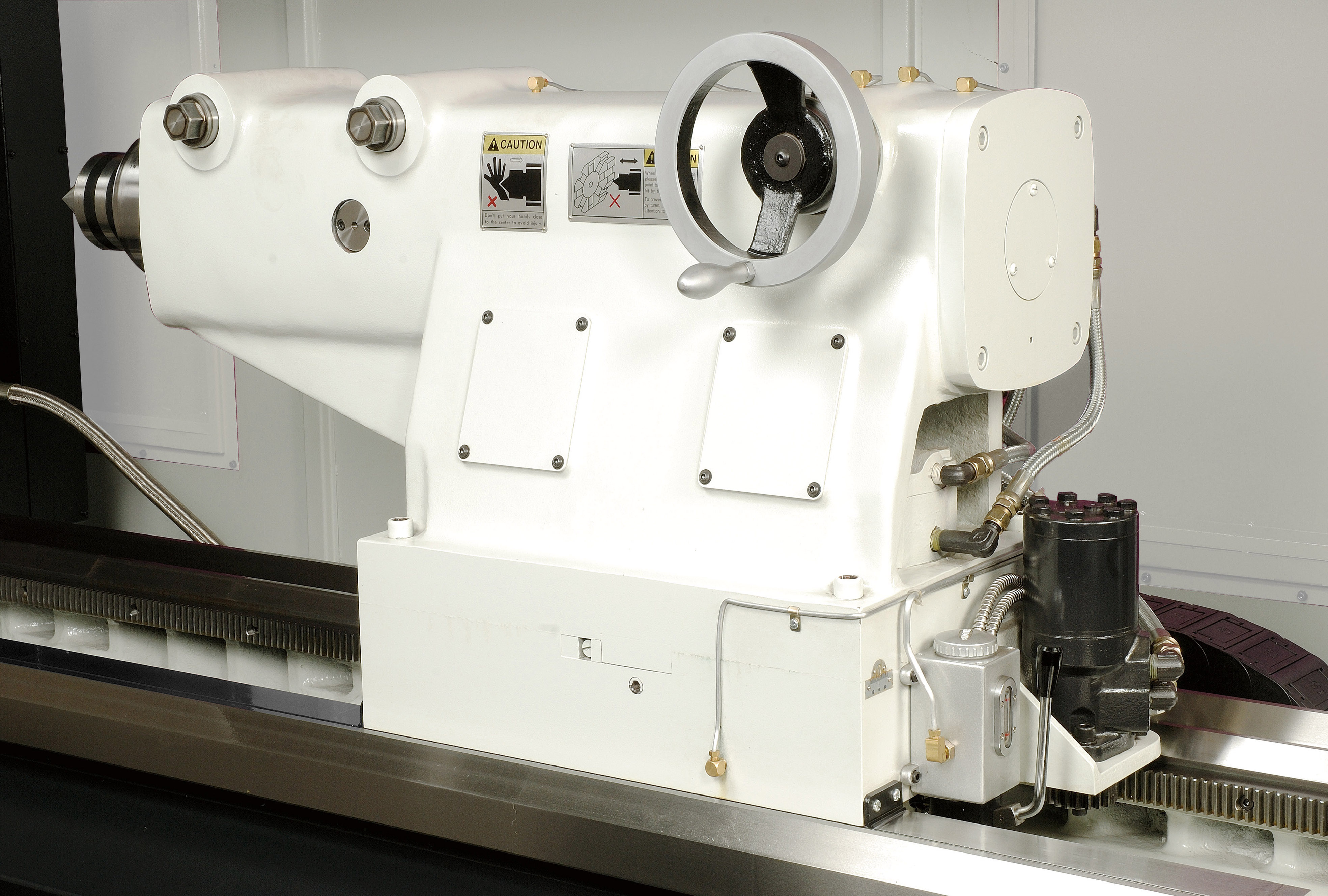

Tailstock quill diameter

165mm (6-1/2")

Quill travel

250mm (9-13/16")

Quill taper

MT # 6

Ballscrew diameter X-axis

40mm (1-9/16") x P8

Ballscrew diameter Z-axis

63mm (2-15/32") x P10

Servo motor for X-axis

AC 2.5 KW

Servo motor for Z-axis

AC 4.4 KW

Rapid traverse X-axis

6m/min

Rapid traverse Z-axis

6m/min

Machine dimension L

5320mm (209-7/16") / 6320mm (248-13/16")
7320mm (288-1/5") / 8320mm (327-1/2") / 9320mm (366-15/16")

Machine dimension W

2800mm (110-1/4")

Machine dimension H

2180mm (85-13/16")

Machine weight (Net)

9400kgs / 10600kgs / 11800kgs / 13000kgs / 14200kgs
9700kgs / 10900kgs / 12100kgs / 13300kgs / 14500kgs
10000kgs / 11200kgs / 12400kgs / 13600kgs / 14800kgs

Machine weight (Gross)

10200kgs / 11600kgs / 13000kgs / 14300kgs / 15600kgs
10500kgs / 11900kgs / 13300kgs / 14600kgs / 15900kgs
10800kgs / 12200kgs / 14200kgs / 14900kgs / 17000kgs

Packing dimension

215"x 90" x 90"/255" x 90" x 90"/295" x 90" x 90"/335" x 90" x 90"/373" x 90" x 90"
