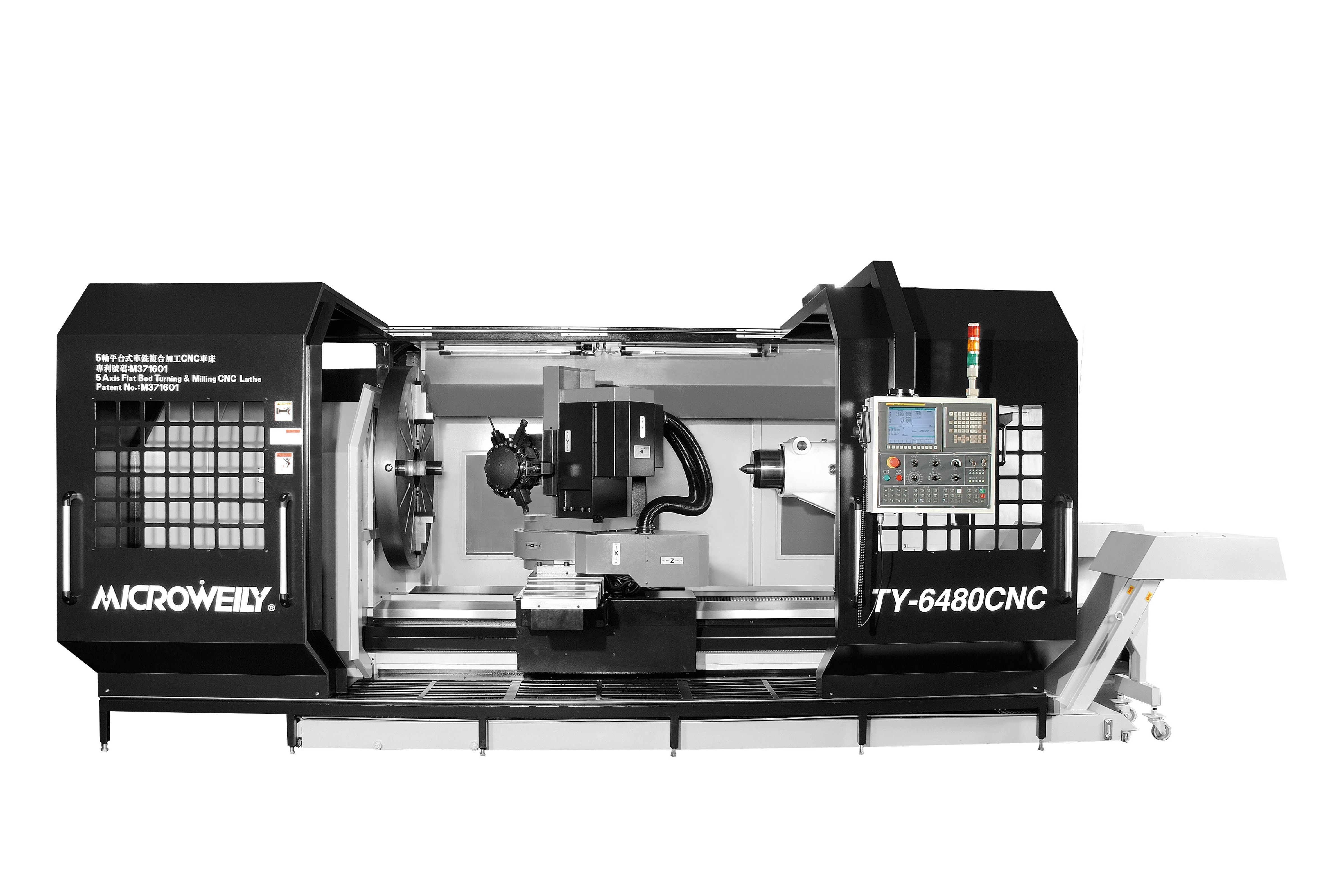

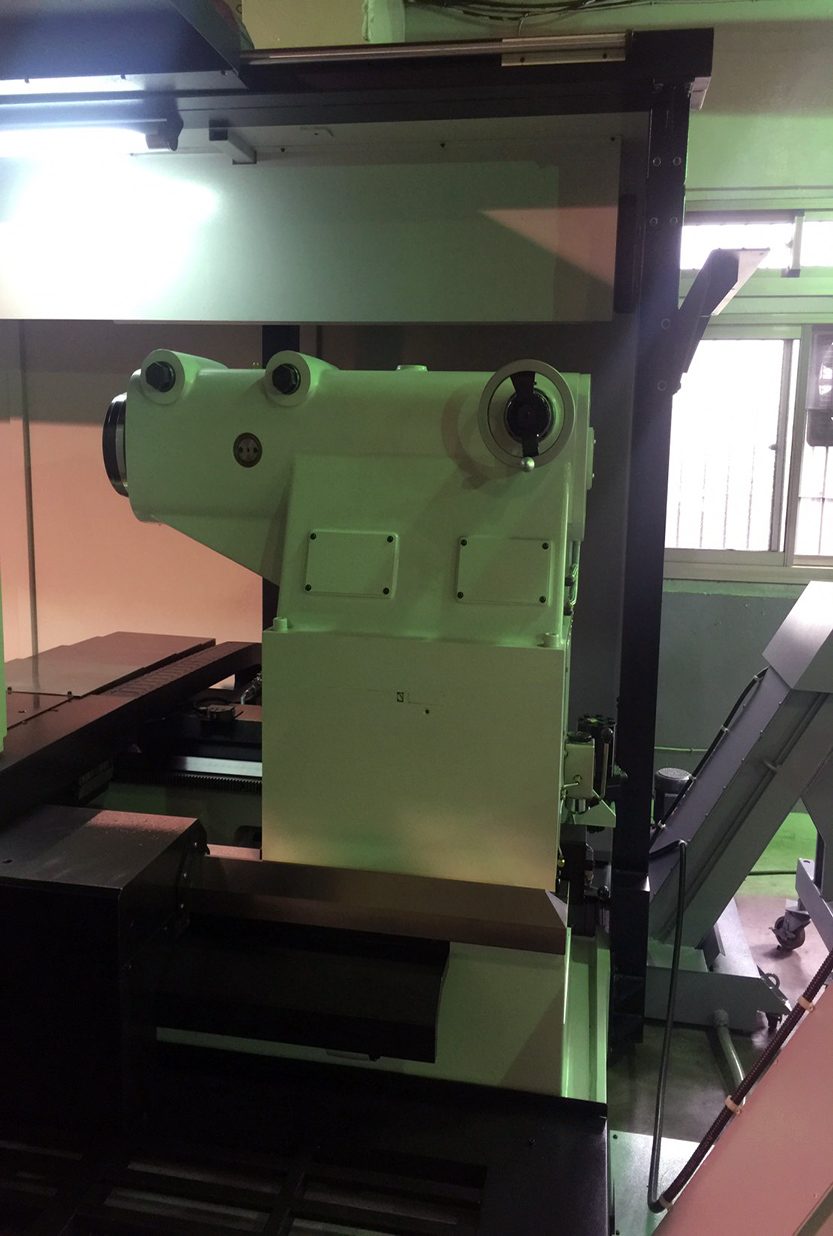

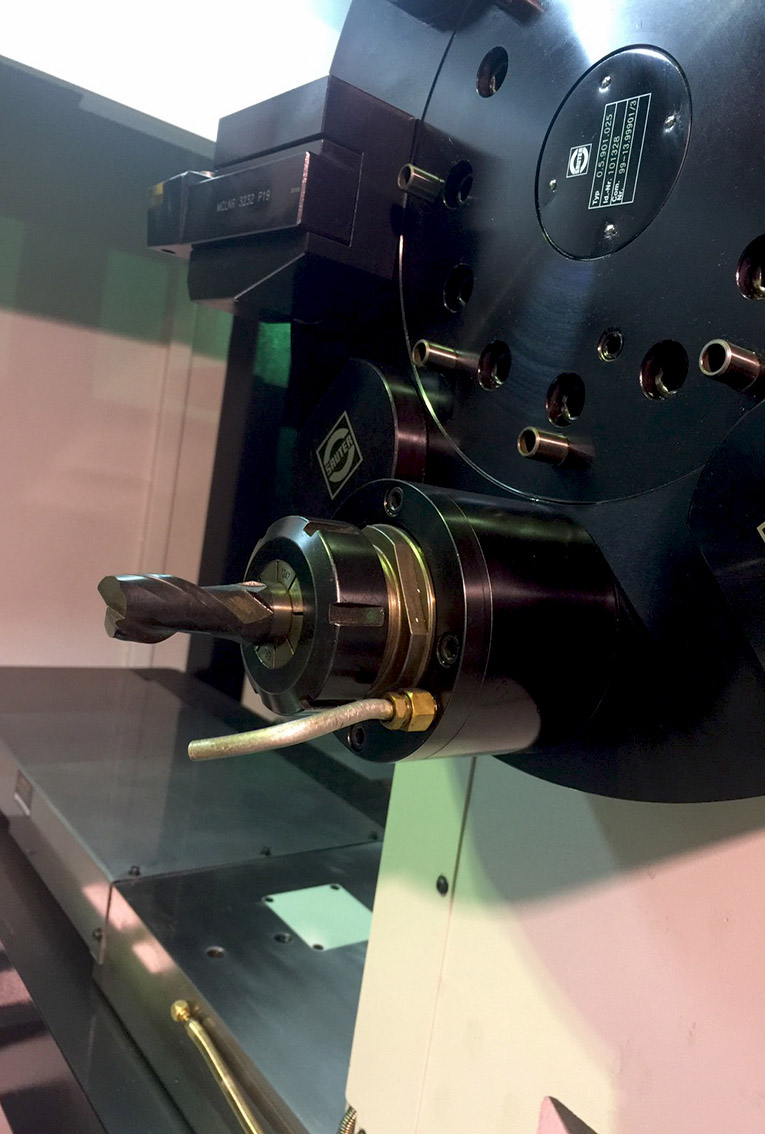

TY-52/58/64 CNC HIGH PRECISION LATHE
SPECIFICATION
| SERIES |
52CNC |
58CNC |
64CNC |
|
Swing over bed |
1310mm (51.57") |
1480mm (58.27") |
1630mm (64.17") |
|
Swing over cross slide |
840mm (33.07") |
1020mm (40.16") |
1180mm (46.46") |
|
Center height |
650mm (25.60") |
740mm (29.13") |
820mm (32.28") |
|
Center admits between |
2000mm (78.74") / 3000mm (118.11") / 4000mm (157.48") |
||
|

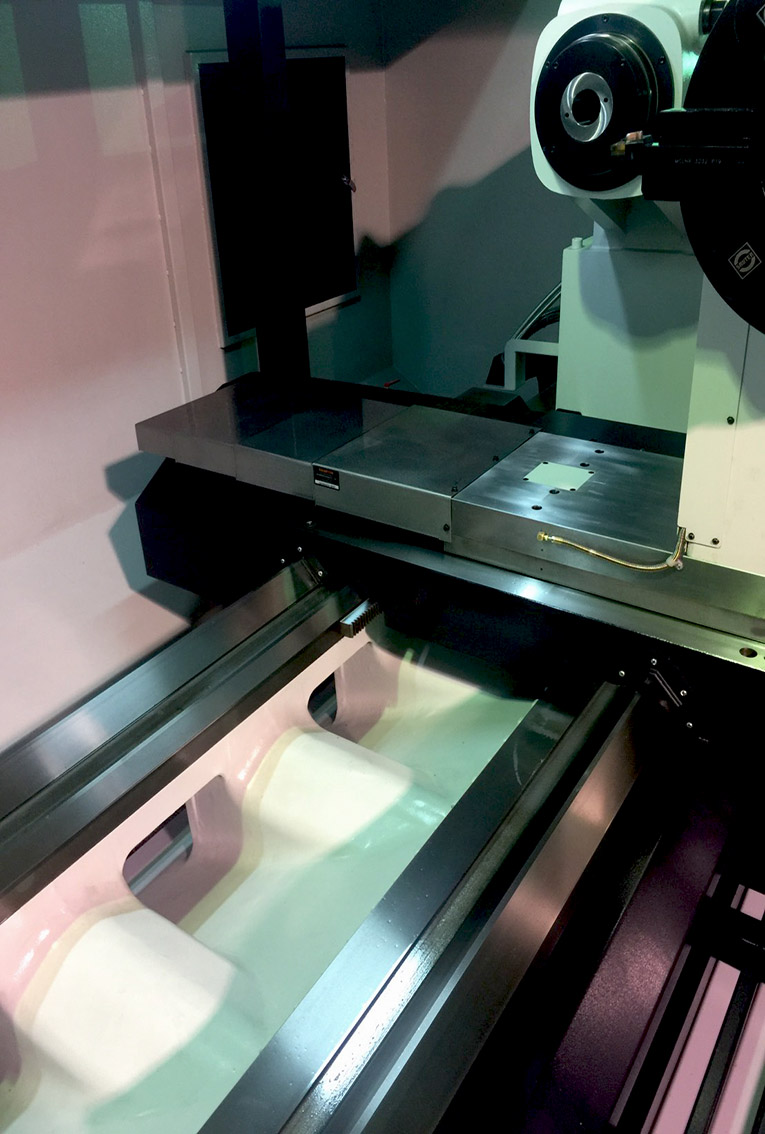

Bed width |
900mm (35.43") |
||
|
Bed length |
4550mm (179.13") / 5550mm (218.50") / 6550mm (257.87") |
||
|
Motor for main spindle |
30HP (Standard) / 40HP (Optional) |
||
|
Motor for coolant pump |
1/4HP (Standard) / 3/4HP (Optional) |
||
|
Spindle nose |
A2-11 (Standard) / A2-15, A2-20 (Optional) |
||
|
Spindle bore |
170mm (6.69") (Standard) / 255mm (10.04") , 355mm (13.97") (Optional) |
||
|
Spindle ranges |
3 Steps |
||
|
Spindle speed |
5-550 r.p.m. (A2-11, A2-15) / 4-400 r.p.m. (A2-20) |
||
|
Longitudinal travel (Z-axis) |
2200mm (86.61") / 3200mm (125.98") / 4200mm (165.35") |
||
|
Cross slide travel (X-axis) |
860mm (33.86") |
||
|

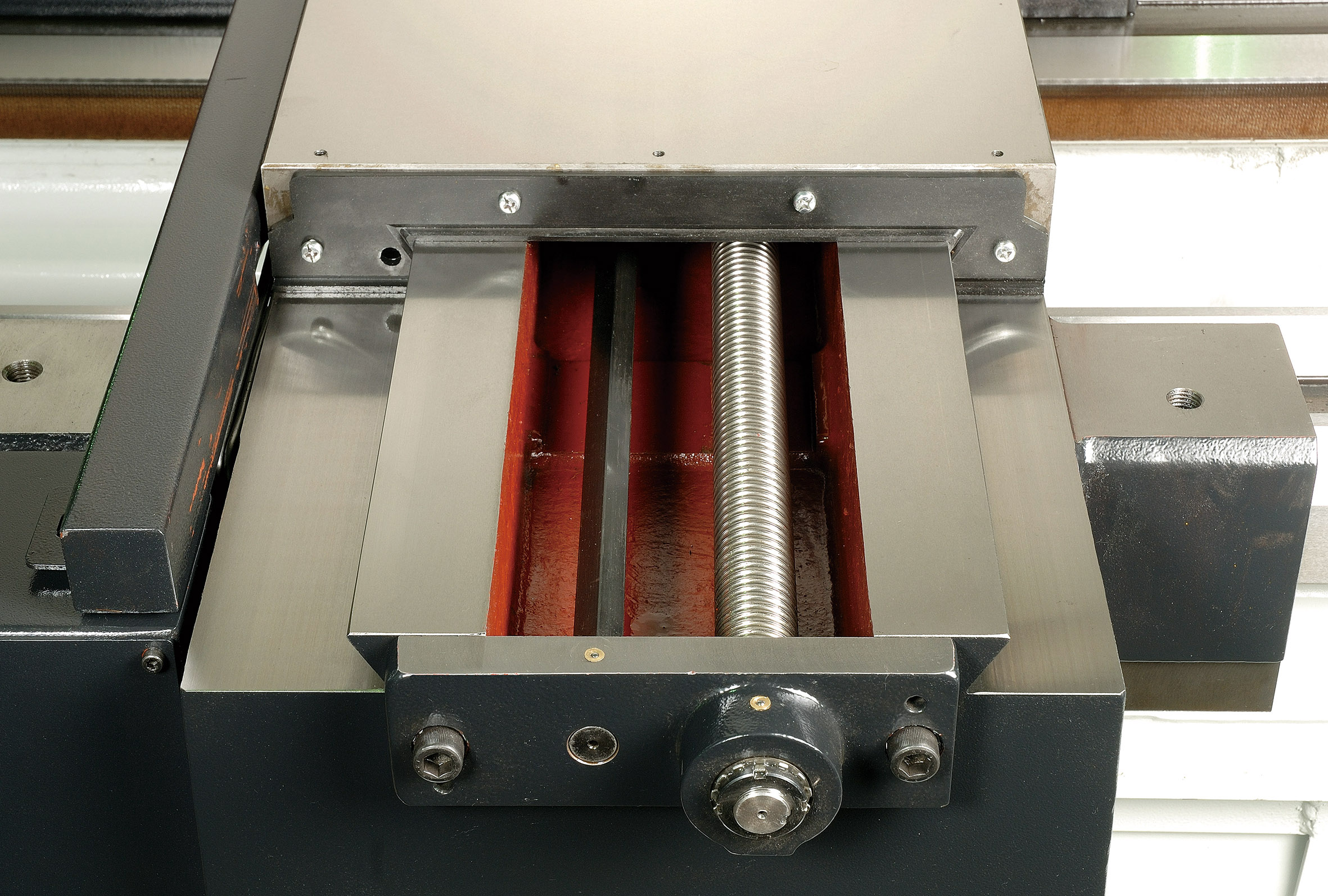

Cross slide dimension |
400mm x 880mm (15.75" x 34.65") |
||
|

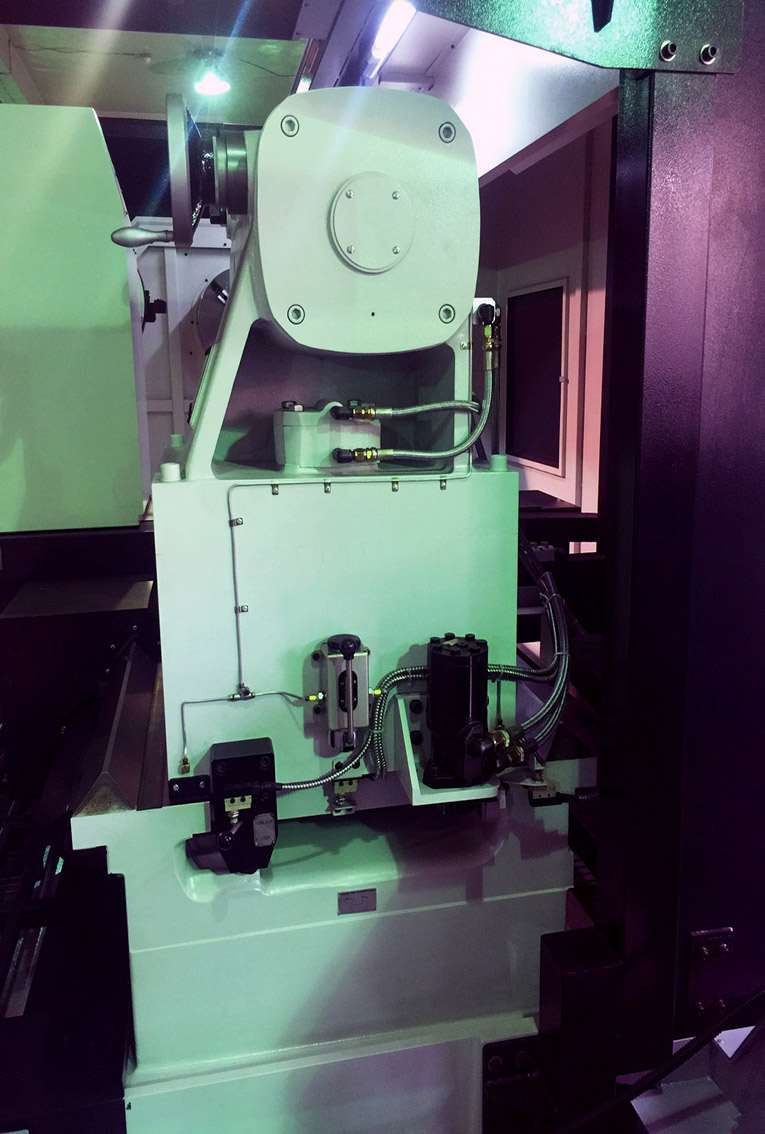

Tailstock quill diameter/travel |
250mm (9.84") / 250mm (9.84") |
||
|
Tailstock quill travel taper |
MT #6 |
||
|
Ballscrew diameter X-axis |
40mm (1.57") x P8 |
||
|
Ballscrew diameter Z-axis |
80mm (3.14") x P10 |
||
|
Rapid traverse X-axis |
6m/min (236"/min) |
||
|
Rapid traverse Z-axis |
6m/min (236"/min) |
||
|
Servo motor for X-axis |
AC 3.0 KW |
||
|
Servo motor for Z-axis |
AC 4.0 KW |
||
|
Machine length |
5510mm (217") / 6510mm (256.30") / 7510mm (295.67") |
||
|
Machine width |
3420mm (134.65") |
||
|
Machine height |
2630mm (103.54") |
||
|
Net weight |
12000kgs / 13600kgs / 15200kgs / 16800kgs / 18400kgs / 21600kgs / 24800kgs |
||
|
Gross weight |
13500kgs / 15100kgs / 16700kgs / 18300kgs / 19900kgs / 23100kgs / 26500kgs |
||
|
Packing dimension (LxWxH) |
230" x 90" x 88" / 270" x 90" x 88" / 310" x 90" x 88" |
||
*Design and specifications are subject to change without notice.
