TY-16SV Servo Turn Lathe

TY-1640SV

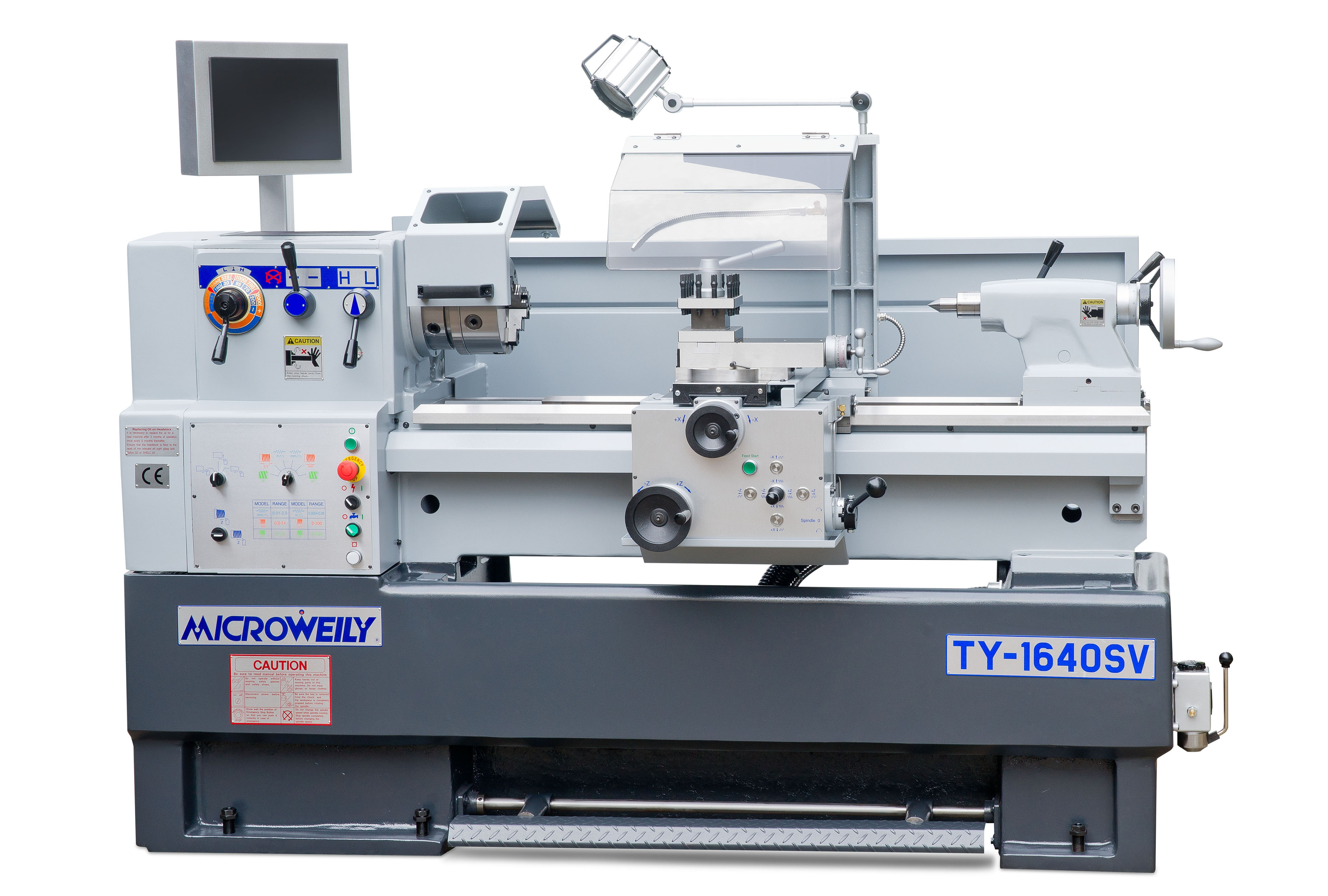

TY-1640SV SERVO TURN LATHE
SPECIFICATION

Swing over bed

410mm (16")

Swing over cross slide

240mm (9-7/16")

Swing in gap diameter

520mm (20-1/2")

Length of gap in front of
face plate

155mm (6-1/8") (W/D1-6)
175mm (6-7/8") (W/A1-6)

Center height

205mm (8-1/16")

Center admits between

1016mm (40")

Bed width

300mm (11-13/16")

Bed length

1900mm (74-3/4")

Bed height

310mm (12-7/32")

Motor for main spindle

5HP, 4P, 3ph (Standard)
7-1/2HP, 4P, 3ph (Optional)

Motor for coolant pump

1/8HP, 3ph

Spindle speeds range

30-2000 r.p.m.

Spindle nose

D1-6", ASA Std. / A1-6", ISO Std.

Spindle taper in nose/sleeve

No.6 / No.4

Spindle bore

52mm (2-1/16")

Spindle number

12

Cross slide width/travel

180mm (7-3/32") / 240mm (9-7/16")

Compound rest width/travel

110mm (4-11/32") / 120mm (4-3/4")

Leadscrew diameter/thread

32mm (1-1/4") / 5mm (13/64")

Cutting tool max. section

25mm x 25mm (1" x 1")

Imperial pitch threads

2-100 T.P.I.

Metric pitch threads

0.02-14mm

Diametral pitch threads

6-100 D.P.

Module pitch threads

0.1-5 M.P.

Longitudinal & Cross feeds

0.0004"-0.08"/rev. (Imperial)
0.01mm-2.0mm/rev. (Metric)

Tailstock quill dia./travel

54mm (2-1/8") / 120mm (4-3/4")

Tailstock quill taper

No.4 Morse

Machine weight

1750kgs

Machine length

2240mm (88-1/5")

Machine width

980mm (38-5/8")

Machine height

1205mm (47-1/2")

Gross weight

2000kgs

Packing dimension (L x W x H)

91" x 50" x 65"

*Design and specifications are subject to change without notice.
